NVIDIA VRWorks™

Variable Rate Shading (VRS) is a new, easy to implement rendering technique enabled by Turing GPUs. It increases rendering performance and quality by applying varying amount of processing power to different areas of the image. VRS works by varying the number of pixels that can be processed by a single pixel shader operation. Single pixel shading operations can now be applied to a block of pixels, allowing applications to effectively vary the shading rate in different areas of the screen. Variable Rate Shading can be used to render more efficiently in VR by rendering to a surface that closely approximates the lens corrected image that is output to the headset display. This avoids rendering many pixels that would otherwise be discarded before the image is output to the VR headset.

Multi-Res Shading is an innovative rendering technique for VR whereby each part of an image is rendered at a resolution that better matches the pixel density of the lens corrected image. Multi-Res Shading uses Maxwell or later architecture features to render multiple scaled viewports in a single pass, delivering substantial performance improvements in pixel shading.

Lens Matched Shading uses the Simultaneous Multi-Projection architecture of NVIDIA Pascal-based GPUs to provide substantial performance improvements in pixel shading. The feature improves upon Multi-res Shading by rendering to a surface that closely approximates the lens corrected image that is output to the headset display. This avoids rendering many pixels that would otherwise be discarded before the image is output to the VR headset.

Traditionally, VR applications have to draw geometry twice -- once for the left eye, and once for the right eye. Single Pass Stereo uses the new Simultaneous Multi-Projection architecture of NVIDIA Pascal-based GPUs to draw geometry only once, then simultaneously project both right-eye and left-eye views of the geometry. This allows developers to almost double the geometric complexity of VR applications, increasing the richness and detail of their virtual world.

Multi-View Rendering (MVR) is a feature in Turing GPUs that expand on upon Single Pass Stereo, increasing the number of projection centers or views for a single rendering pass from two to four. All four of the views available in a single pass are now position-independent and can shift along any axis in the projective space. This unique rendering capability enables new display configurations for Virtual Reality. By rendering four projection centers, Multi-View Rendering can power canted HMDs (non-coplanar displays) enabling extremely wide fields of view.

VR SLI provides increased performance for virtual reality apps where multiple GPUs can be assigned a specific eye to dramatically accelerate stereo rendering. With the GPU affinity API, VR SLI allows scaling for systems with more than 2 GPUs.

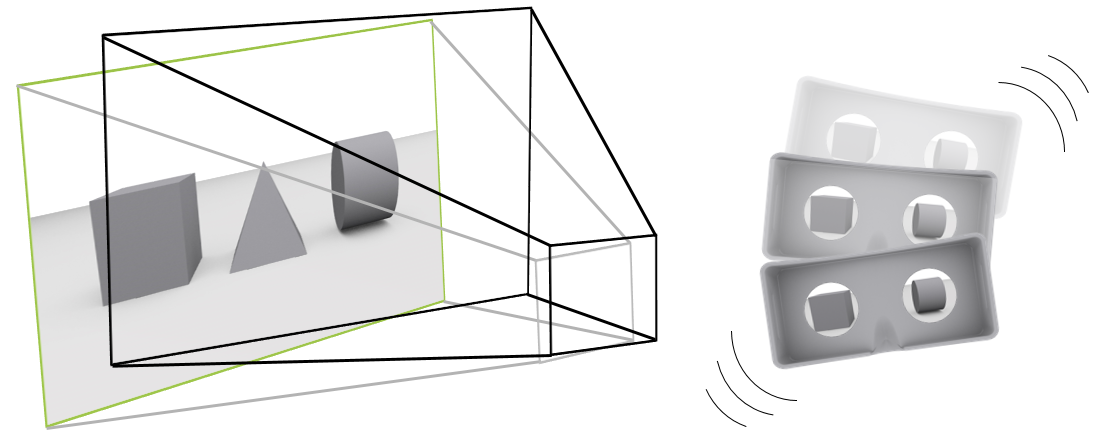

• Late Latch (DX11)- Late-Latch is a generic mechanism useful to VR application developers and VR headset developers for providing latency-sensitive data to the GPU as late as possible. In traditional frame pipelining, such latency-sensitive data is sampled by CPU before it executes its portion of the work, but it is out of date by the time GPU begins rendering. Late-Latching cuts down this latency, reducing discomfort and motion sickness.


• SMP Assist (DX11)- SMP Assist reduces the complexity of integrating VRWorks into applications by removing the need to manage the graphics state specific to Multi-Res Shading and Lens Matched Shading. Specifically, SMP Assist creates and manages fast geometry shaders, viewport and scissor states, removing the need for applications to manage this themselves. Learn More...

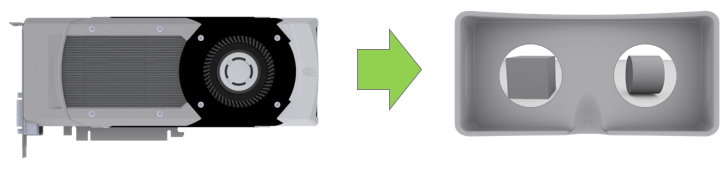

With Direct Mode, the NVIDIA driver treats VR headsets as head mounted displays accessible only to VR applications, rather than a normal Windows monitor that your desktop shows up on, providing better plug and play support and compatibility for the VR headset.

Front Buffer Rendering enables the GPU to render directly to the front buffer to reduce latency.

• Late Latch
• Periodic Frame Notification
• Cross-Process Synchronization
• Dual display connector support

VRWorks 360 Video enables VR developers and content creators to capture, stitch, and stream 360º videos in real-time or offline. The SDK performs GPU-accelerated video decode, calibration, stitching, encode and outputs an equirectangular 360-degree mono or stereo video with audio.

GPUDirect for Video technology enables low latency video transfers to and from the GPU enabling developers to seamlessly overlay video and graphics into VR environments. GPUDirect for Video can be used in conjunction with the 360 Video SDK for fast ingest of multiple camera streams. GPUDirect for Video is available for Quadro GPUs.

The demand for realism increases dramatically the instant a player puts on a head-mounted display (HMD) - images, sounds, and interactions make or break the immersiveness of the experience. For example, audio in a small room will sound different than the same audio outdoors because of the reflections caused by sound bouncing off the walls of the room.

Leveraging NVIDIA OptiX ray tracing technology, VRWorks Audio traces the path of sound in real-time, delivering physically realistic audio that conveys the size, shape, and material properties of the virtual environment you are in.

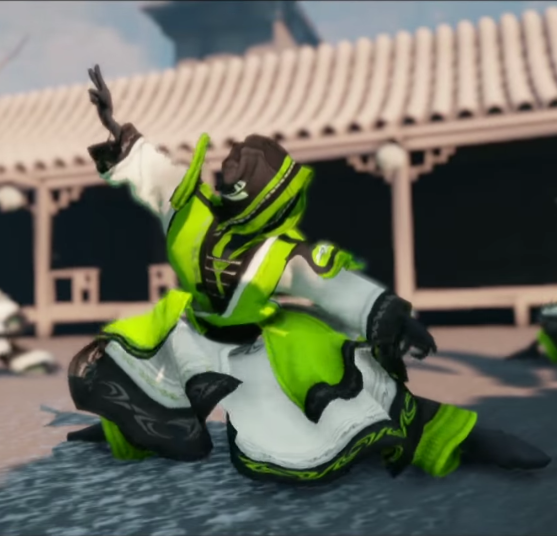

Realistically modelling touch interactions and environment behavior is critical for delivering full presence in VR. Today’s VR experiences deliver touch interactivity through a combination of positional tracking, hand controllers, and haptics. NVIDIA’s PhysX Constraint Solver detects when a hand controller interacts with a virtual object and enables the game engine to provide a physically-accurate visual and haptic response. PhysX also models the physical behavior of the virtual world around you so that all interactions, whether it be an explosion or hand splashing through water, are accurate and behave as in the real world.

Check out the NVIDIA VR Funhouse video to see how PhysX can be integrated into VR applications.

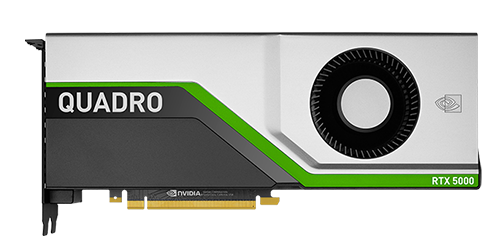

Warp & Blend API’s provide application independent geometry corrections and intensity adjustments across entire desktops to create a seamless VR CAVE environments. Warp & Blend API’s enable all the above adjustments for pristine image quality without introducing any latency.

NVIDIA provides various synchronization techniques to prevent tearing and image misalignment while creating one large desktop that is driven from multiple Quadro GPU’s or clusters. Various technologies like Frame Lock, Stereo Lock, Swap Groups & Swap Barriers are available to help developers design seamless and expansive VR CAVE & Cluster environments.

GPU Affinity provides dramatic performance improvements by managing the placement of graphics and rendering workloads across multiple GPU’s. This provides developers fine grain control to pin OpenGL contexts to specific GPU’s.

GPUDirect for Video technology enables low latency video transfers to and from the GPU enabling applications to seamlessly overlay video and graphics into VR environments. GPUDirect for Video can be used in conjunction with the 360 Video SDK for fast ingest of multiple camera streams.
