_dwSensorRadarDecoder_constants Struct Reference
Detailed Description
Holds constants for a given radar.
Definition at line 39 of file RadarPlugin.h.

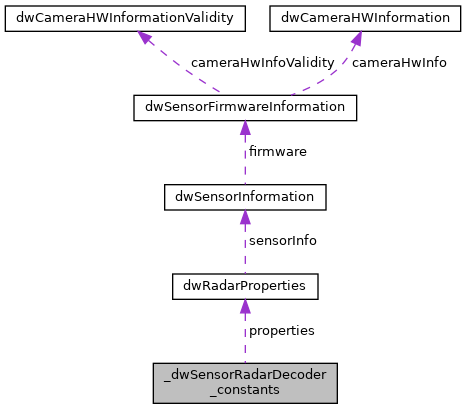

Collaboration diagram for _dwSensorRadarDecoder_constants:
Data Fields | |
| dwRadarProperties | properties |
| Radar properties. More... | |
| size_t | maxPayloadSize |
| Packet max payload size, in bytes. More... | |
| size_t | maxPointsPerPacket [DW_RADAR_RETURN_TYPE_COUNT][DW_RADAR_RANGE_COUNT] |
| Maximum points per packet associate to each radar return type and range. More... | |
| size_t | maxPacketsPerScan |
| Maximum packets per scan. More... | |
| size_t | packetsPerScan [DW_RADAR_RETURN_TYPE_COUNT][DW_RADAR_RANGE_COUNT] |
| Packets per scan associate to each radar return type and range. More... | |
| size_t | dynamicsSizeInBytes |
| Dynamics Size, in bytes. More... | |
Field Documentation
◆ dynamicsSizeInBytes
| size_t _dwSensorRadarDecoder_constants::dynamicsSizeInBytes |
Dynamics Size, in bytes.
Definition at line 57 of file RadarPlugin.h.
◆ maxPacketsPerScan
| size_t _dwSensorRadarDecoder_constants::maxPacketsPerScan |
Maximum packets per scan.
Definition at line 51 of file RadarPlugin.h.
◆ maxPayloadSize
| size_t _dwSensorRadarDecoder_constants::maxPayloadSize |
Packet max payload size, in bytes.
Definition at line 45 of file RadarPlugin.h.
◆ maxPointsPerPacket
| size_t _dwSensorRadarDecoder_constants::maxPointsPerPacket[DW_RADAR_RETURN_TYPE_COUNT][DW_RADAR_RANGE_COUNT] |
Maximum points per packet associate to each radar return type and range.
Definition at line 48 of file RadarPlugin.h.
◆ packetsPerScan
| size_t _dwSensorRadarDecoder_constants::packetsPerScan[DW_RADAR_RETURN_TYPE_COUNT][DW_RADAR_RANGE_COUNT] |
Packets per scan associate to each radar return type and range.
Definition at line 54 of file RadarPlugin.h.
◆ properties
| dwRadarProperties _dwSensorRadarDecoder_constants::properties |
Radar properties.
Definition at line 42 of file RadarPlugin.h.
The documentation for this struct was generated from the following file:
