Microboot 1 and PSC-BL1#

After the BootROM has completed execution, PSC-ROM/PSC-BL1 releases reset on the BPMP R5 to start Microboot1 (MB1) in the boot flow process as follows:

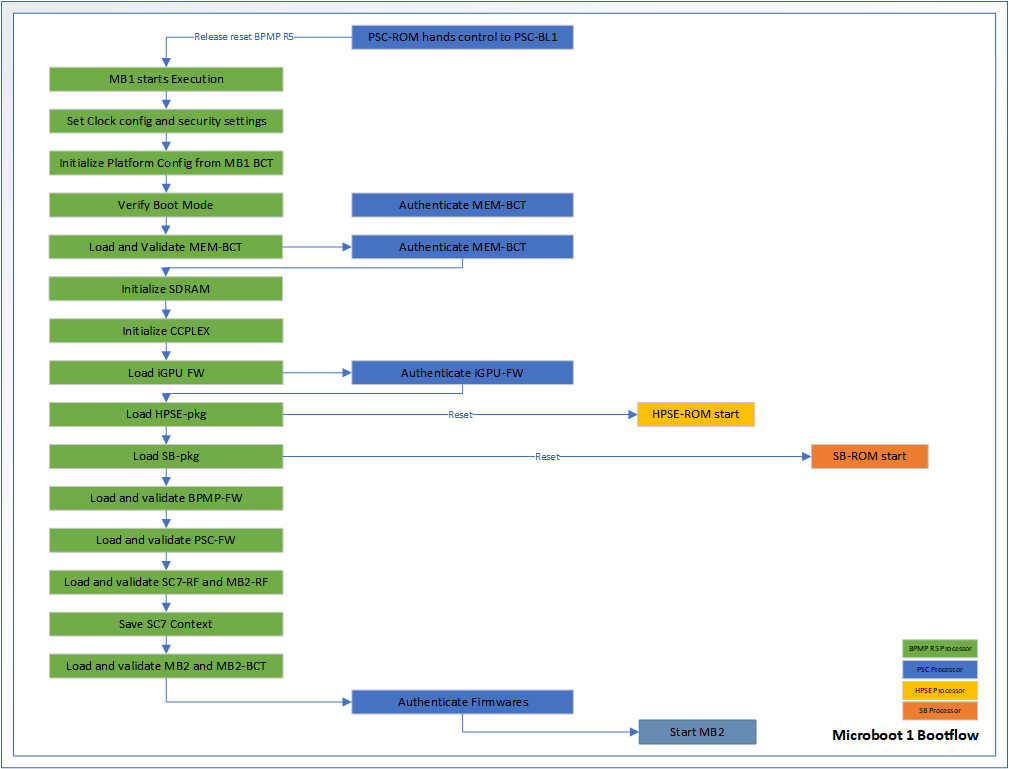

Microboot 1 bootflow diagram showing the sequence of loading, validating, and authenticating firmware components before starting the next boot stage.

MB1 extends BootROM to provide the same security level in conjunction with PSC-BL1. During MB1 sequence, these tasks are executed:

  • Set clock and security settings.

  • Initialize the platform configuration settings from MB1_BCT.

  • Initialize the SDRAM based on the MB1 boot configuration table, MB1_BCT, NVBCT, and MEM_BCT.

  • Initialize the CCPLEX.

  • Load/authenticate the iGPU-FW, BPMP-FW, PSC-FW and HPSE-PKG, SB-PKG firmwares.

  • Load the SC7 firmwares and prepare SC7 context.

  • Load/authenticate.

MB1_BCT NVBCT are NOT customer configurable.
