dwVehicleSuspensionProperties Struct Reference

Detailed Description

Suspension properties.

Definition at line 345 of file Vehicle.h.

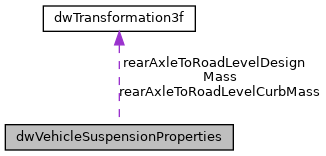

Collaboration diagram for dwVehicleSuspensionProperties:

Data Fields
float32_t	rollAngleGradient
	Suspension roll angle gradient. [deg s^2 / m]. More...
float32_t	pitchAngleGradientAccel
	Suspension pitch angle gradient during acceleration. [deg s^2 / m]. More...
float32_t	pitchAngleGradientBrake
	Suspension pitch angle gradient during braking. [deg s^2 / m]. More...
dwTransformation3f	rearAxleToRoadLevelDesignMass
	Transformation of the ISO23150 vehicle rear-axle coordinate system to the ISO23150 vehicle road-level coordinate system under a load as specified by the design mass. More...
dwTransformation3f	rearAxleToRoadLevelCurbMass
	Transformation of the ISO23150 vehicle rear-axle coordinate system to the ISO23150 vehicle road-level coordinate system under a load as specified by the curb mass. More...

Field Documentation

pitchAngleGradientAccel

float32_t dwVehicleSuspensionProperties::pitchAngleGradientAccel

Suspension pitch angle gradient during acceleration. [deg s^2 / m].

Definition at line 351 of file Vehicle.h.

pitchAngleGradientBrake

float32_t dwVehicleSuspensionProperties::pitchAngleGradientBrake

Suspension pitch angle gradient during braking. [deg s^2 / m].

Definition at line 354 of file Vehicle.h.

rearAxleToRoadLevelCurbMass

dwTransformation3f dwVehicleSuspensionProperties::rearAxleToRoadLevelCurbMass

Transformation of the ISO23150 vehicle rear-axle coordinate system to the ISO23150 vehicle road-level coordinate system under a load as specified by the curb mass.

Definition at line 360 of file Vehicle.h.

rearAxleToRoadLevelDesignMass

dwTransformation3f dwVehicleSuspensionProperties::rearAxleToRoadLevelDesignMass

Transformation of the ISO23150 vehicle rear-axle coordinate system to the ISO23150 vehicle road-level coordinate system under a load as specified by the design mass.

Definition at line 357 of file Vehicle.h.

rollAngleGradient

float32_t dwVehicleSuspensionProperties::rollAngleGradient

Suspension roll angle gradient. [deg s^2 / m].

Definition at line 348 of file Vehicle.h.

---

The documentation for this struct was generated from the following file:

• Vehicle.h
