dwImageMetaData Struct Reference
Detailed Description

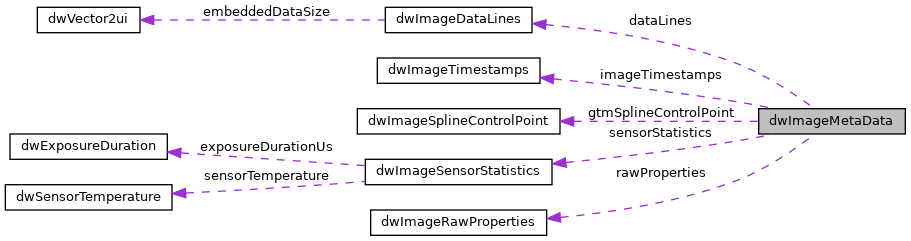

Collaboration diagram for dwImageMetaData:
Public Member Functions | |
| float32_t exposureTime | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct") |
| Specifies the exposure time (microsecond) More... | |
| float32_t analogGain | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct") |
| Specifies the analog Gain. More... | |
| float32_t conversionGain | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct") |
| Specifies the conversion Gain. More... | |
| float32_t digitalGain | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct") |
| Specifies the digital Gain. More... | |
| float32_t wbGain[4] | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct") |
| Specifies the sensor white balance gains : R(0) G1(1) G2(2) B(3) More... | |
| uint32_t msbPosition | DW_DEPRECATED ("This structure variable is deprecated and will be removed in the next major release. Please use the new variable in rawProperties in this struct") |
| Specifies the msb of the pixel data. More... | |
Data Fields | |
| uint32_t | flags |
| combination of multiple flags 'dwImageMetaDataFlags' defining which of the meta fields are valid More... | |
| dwImageTimestamps | imageTimestamps |
| Specifies image timestamps. More... | |
| uint32_t | frameSequenceNumber |
| Holds a frame sequence number, that is, a monotonically increasing frame counter. More... | |
| dwImageDataLines | dataLines |
| embedded data lines. More... | |
| dwImageRawProperties | rawProperties |
| dwImageSensorStatistics | sensorStatistics |
| Holds info on sensor statistics at the time of the image capture. More... | |
| dwImageSplineControlPoint | gtmSplineControlPoint [DW_IMAGE_NUM_SPLINE_COMPONENTS] |
| Holds the global tonemap block, containing a set of spline control points. More... | |
| dwImageAllocationAttrListHandle_t | allocAttrs |
| Allocation attributes used by internal drivers. More... | |
| int32_t | colorStdPriv |
| ColorStd attributes used by internal drivers. More... | |
Member Function Documentation
◆ DW_DEPRECATED() [1/6]
| uint32_t msbPosition dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in rawProperties in this struct" | ) |
Specifies the msb of the pixel data.
◆ DW_DEPRECATED() [2/6]
| float32_t exposureTime dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct" | ) |
Specifies the exposure time (microsecond)
◆ DW_DEPRECATED() [3/6]
| float32_t analogGain dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct" | ) |
Specifies the analog Gain.
◆ DW_DEPRECATED() [4/6]
| float32_t conversionGain dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct" | ) |
Specifies the conversion Gain.
◆ DW_DEPRECATED() [5/6]
| float32_t digitalGain dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct" | ) |
Specifies the digital Gain.
◆ DW_DEPRECATED() [6/6]
| float32_t wbGain [4] dwImageMetaData::DW_DEPRECATED | ( | "This structure variable is deprecated and will be removed in the next major release. Please use the new variable in sensorStatistics in this struct" | ) |
Specifies the sensor white balance gains : R(0) G1(1) G2(2) B(3)
Field Documentation
◆ allocAttrs
| dwImageAllocationAttrListHandle_t dwImageMetaData::allocAttrs |
◆ colorStdPriv
| int32_t dwImageMetaData::colorStdPriv |
◆ dataLines
| dwImageDataLines dwImageMetaData::dataLines |
embedded data lines.
This is where the meta data defined above are parsed from A RAW image coming from a sensor often contains this information arranged as extra lines before and after the image. The full image is stored in a buffer structured as [TOP DATA][IMAGE][BOTTOM DATA] (top * W) + (H * W) + (bott * W)
◆ flags
| uint32_t dwImageMetaData::flags |
◆ frameSequenceNumber
| uint32_t dwImageMetaData::frameSequenceNumber |
◆ gtmSplineControlPoint
| dwImageSplineControlPoint dwImageMetaData::gtmSplineControlPoint[DW_IMAGE_NUM_SPLINE_COMPONENTS] |
◆ imageTimestamps
| dwImageTimestamps dwImageMetaData::imageTimestamps |
◆ rawProperties
| dwImageRawProperties dwImageMetaData::rawProperties |
◆ sensorStatistics
| dwImageSensorStatistics dwImageMetaData::sensorStatistics |
The documentation for this struct was generated from the following file:
