dwCameraIspStatsOverrideSetting Struct Reference
DriveWorks » Sensors Interface » Camera Sensor

Detailed Description

ISP Override Statistics Settings.

Note
: ISP histStats[0] and lacStats[0] statistics are consumed by internal algorithms to generate new sensor and ISP settings. Incorrect usage or disabling these statistics blocks would result in failure or image quality degradation. Refer to SIPL documentation for more details.

Definition at line 554 of file Camera.h.

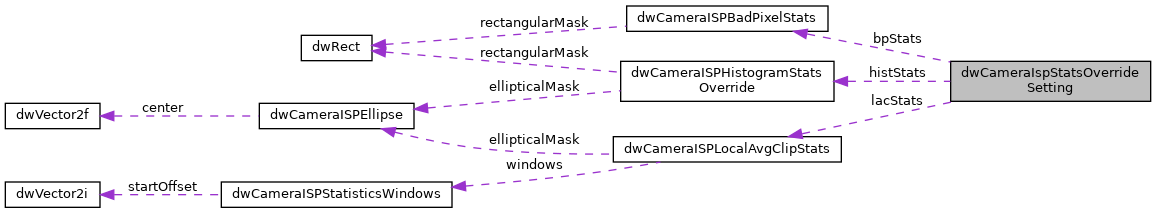

Collaboration diagram for dwCameraIspStatsOverrideSetting:
Collaboration graph
[legend]

Data Fields

bool enableHistStatsOverride [DW_CAMERA_NUM_ISP_UNITS]
 boolean flag to enable histogram statistics settings override More...

dwCameraISPHistogramStatsOverride histStats [DW_CAMERA_NUM_ISP_UNITS]
 Structure containing override settings for histogram statistics block. More...

bool enableLacStatsOverride [DW_CAMERA_NUM_ISP_UNITS]
 boolean flag to enable local average clip statistics settings override More...

dwCameraISPLocalAvgClipStats lacStats [DW_CAMERA_NUM_ISP_UNITS]
 Structure containing override settings for local average clip statistics block. More...

bool enableBpStatsOverride
 boolean flag to enable bad pixel statistics settings override More...

dwCameraISPBadPixelStats bpStats
 Structure containing override settings for bad pixel statistics block. More...


Field Documentation

◆ bpStats

dwCameraISPBadPixelStats dwCameraIspStatsOverrideSetting::bpStats

Structure containing override settings for bad pixel statistics block.

Definition at line 567 of file Camera.h.

◆ enableBpStatsOverride

bool dwCameraIspStatsOverrideSetting::enableBpStatsOverride

boolean flag to enable bad pixel statistics settings override

Definition at line 565 of file Camera.h.

◆ enableHistStatsOverride

bool dwCameraIspStatsOverrideSetting::enableHistStatsOverride[DW_CAMERA_NUM_ISP_UNITS]

boolean flag to enable histogram statistics settings override

Definition at line 557 of file Camera.h.

◆ enableLacStatsOverride

bool dwCameraIspStatsOverrideSetting::enableLacStatsOverride[DW_CAMERA_NUM_ISP_UNITS]

boolean flag to enable local average clip statistics settings override

Definition at line 561 of file Camera.h.

◆ histStats

dwCameraISPHistogramStatsOverride dwCameraIspStatsOverrideSetting::histStats[DW_CAMERA_NUM_ISP_UNITS]

Structure containing override settings for histogram statistics block.

Definition at line 559 of file Camera.h.

◆ lacStats

dwCameraISPLocalAvgClipStats dwCameraIspStatsOverrideSetting::lacStats[DW_CAMERA_NUM_ISP_UNITS]

Structure containing override settings for local average clip statistics block.

Definition at line 563 of file Camera.h.

The documentation for this struct was generated from the following file:
