dwCameraISPHistogramStatsOverride Struct Reference

Detailed Description

SIPL ISP Histogram Statistics Override Params.

Definition at line 451 of file Camera.h.

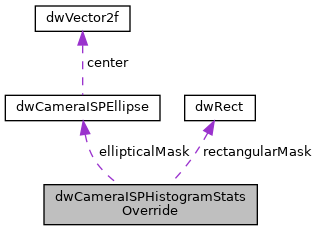

Collaboration diagram for dwCameraISPHistogramStatsOverride:

Data Fields
bool	enable
	Holds a Boolean to enable histogram statistics Control block. More...
float32_t	offset
	Holds offset to be applied to input data prior to bin mapping. More...
uint8_t	knees [8]
	Holds bin index specifying different zones in the histogram. More...
uint8_t	ranges [8]
	Holds range of the pixel values to be considered for each zone. More...
dwRect	rectangularMask
	Holds a rectangular mask for excluding pixels outside a specified area. More...
bool	ellipticalMaskEnable
	Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area. More...
dwCameraISPEllipse	ellipticalMask
	Holds an elliptical mask for excluding pixels outside a specified area. More...
bool	disableLensShadingCorrection
	boolean flag to disable lens shading compensation for histogram statistics block More...

Field Documentation

disableLensShadingCorrection

bool dwCameraISPHistogramStatsOverride::disableLensShadingCorrection

boolean flag to disable lens shading compensation for histogram statistics block

Definition at line 493 of file Camera.h.

ellipticalMask

dwCameraISPEllipse dwCameraISPHistogramStatsOverride::ellipticalMask

Holds an elliptical mask for excluding pixels outside a specified area.

Definition at line 491 of file Camera.h.

ellipticalMaskEnable

bool dwCameraISPHistogramStatsOverride::ellipticalMaskEnable

Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area.

Definition at line 489 of file Camera.h.

enable

bool dwCameraISPHistogramStatsOverride::enable

Holds a Boolean to enable histogram statistics Control block.

Definition at line 454 of file Camera.h.

knees

uint8_t dwCameraISPHistogramStatsOverride::knees[8]

Holds bin index specifying different zones in the histogram.

Each zone can have a different number of bins. Supported values: [1, 255]

Definition at line 465 of file Camera.h.

offset

float32_t dwCameraISPHistogramStatsOverride::offset

Holds offset to be applied to input data prior to bin mapping.

Supported values: [-2.0, 2.0]

Definition at line 459 of file Camera.h.

ranges

uint8_t dwCameraISPHistogramStatsOverride::ranges[8]

Holds range of the pixel values to be considered for each zone.

The whole pixel range is divided into NVSIPL_ISP_HIST_KNEE_POINTS zones. Supported values: [0, 21]

Definition at line 472 of file Camera.h.

rectangularMask

dwRect dwCameraISPHistogramStatsOverride::rectangularMask

Holds a rectangular mask for excluding pixels outside a specified area.

The coordinates of image top left and bottom right points are (0, 0) and (width, height), respectively. A rectangle ((right > left) && (bottom > top)), or must be ((0,0), (0,0)) to disable the rectangular mask.

The rectangle settings(x0, y0, x1, y1) must follow the constraints listed below:

• (x0 >= 0) and (y0 >= 0)
• x0 and x1 should be even
• (x1 <= image width) and (y1 <= image height)
• rectangle width(x1 - x0) >= 2 and height(y1 - y0) >= 2

Definition at line 487 of file Camera.h.

---
