P3710 Networking

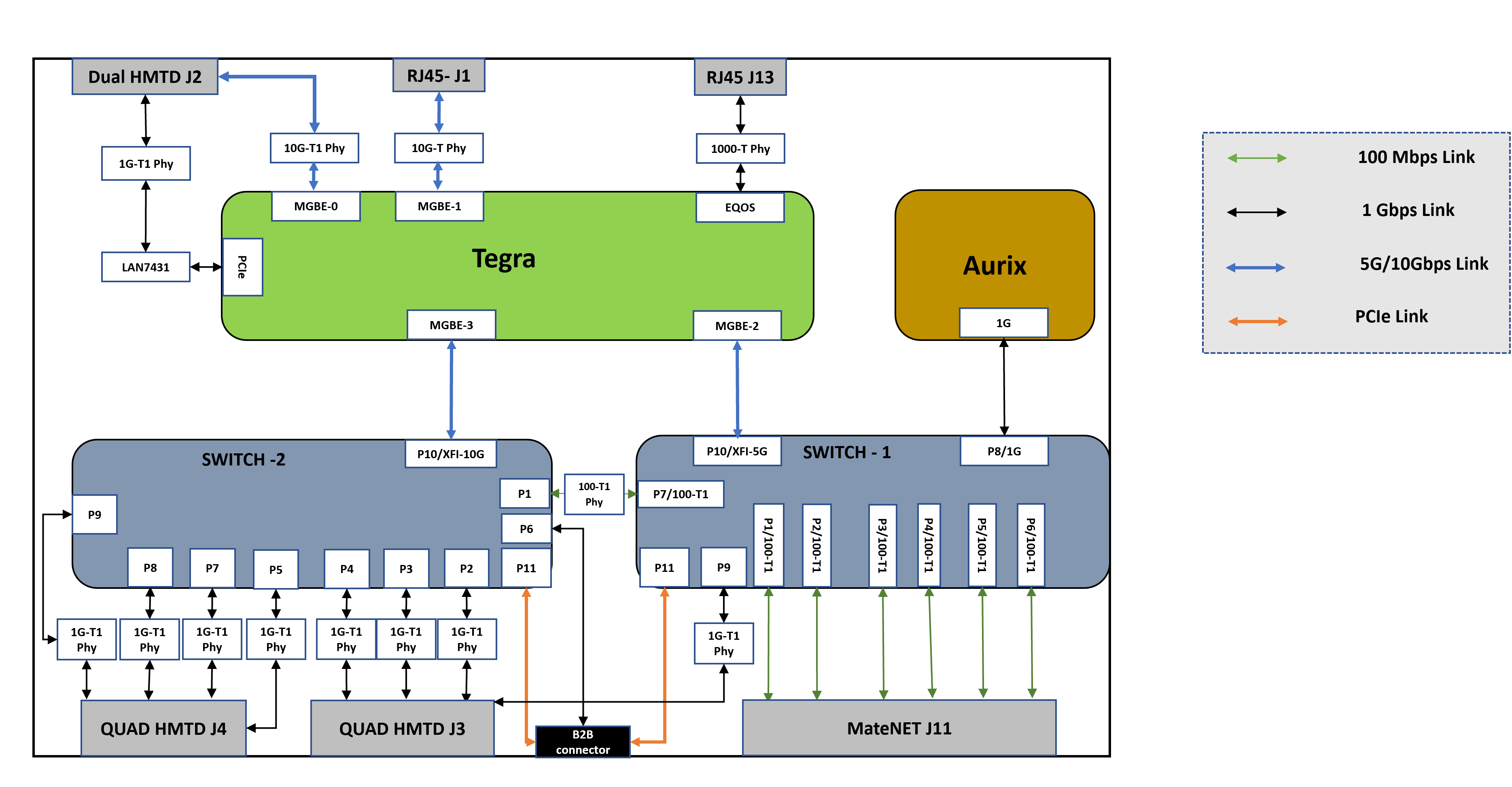

The following diagram shows the P3710 network topology:

Board External Connectors

(Common for both P3663 and P3710)

Matenet

Matenet connector has connection for Port 1 to Port 6 of Oak switch.

QUAD HMTD

The following is the channel map of HMTD:

External Connector Port: Mapping to Switch/Controller

QUAD HMTD Connector J3

Port Connected to
1 Switch-1 (88Q5072) Port 9
2 Switch-2 (88Q6113) Port 2
3 Switch-2 (88Q6113) Port 3
4 Switch-2 (88Q6113) Port 4

QUAD HMTD Connector J4

Port Connected to
1 Switch-2 (88Q6113) Port 5
2 Switch-2 (88Q6113) Port 7
3 Switch-2 (88Q6113) Port 8
4 Switch-2 (88Q6113) Port 9

Dual HMTD Connector J2

Port Connected to
1 Tegra MGBE0 Ethernet Controller
2 LAN7431 (PCIe Ethernet Controller)
MateNET Connector J11:
Port Pin Number Connected to
1 Pin 1&2 Switch (88Q5072) Port 1
2 Pin 3&4 Switch (88Q5072) Port 2
3 Pin 5&6 Switch (88Q5072) Port 3
4 Pin 11&12 Switch (88Q5072) Port 4
5 Pin 9&10 Switch (88Q5072) Port 5
6 Pin 7&8 Switch (88Q5072) Port 6
