Debugging CSI Capture Errors#

Note

All commands in this section must run as root user (with sudo).

The terms used throughout this section are as follows:

  • CCPLEX : NVIDIA Carmel CPU complex running the capture stack and applications.

  • CRC : Cyclic Redundancy Check, a 16-bit checksum present in MIPI CSI packet footer.

  • ECC : Error Correction Code, a 6-bit code present in MIPI CSI packet header that can be used by the receiver to correct single bit errors and detect double bit errors.

  • NVCSI : An SoC MIPI CSI interface conformant to CSI2 v2.0 specification.

  • RCE : Realtime Camera Engine is an ARM Cortex R5 core running an RTOS that handles programming of NVCSI/VI engines and notify messages from VI.

  • VI : An SoC Video Input module that takes frame data from NVCSI interface and writes it to memory.

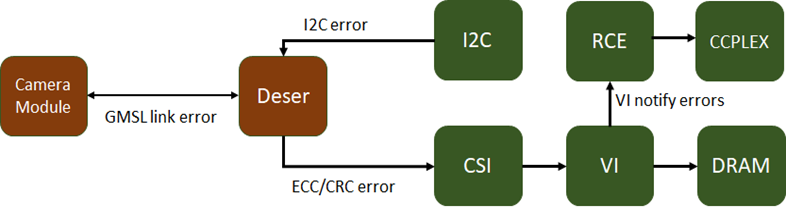

The layers where errors can occur during a camera capture are as follows:

Block diagram showing potential error sources in a camera data pipeline with data flowing through RCE, CCPLEX, VI, and DRAM, as well as error notifications from VI to RCE.

Deserializer Errors#

Two signals that can be generated by Deserializer are as follows:

  1. ERRB

  2. LOCK

If these signals are toggled, SIPL sends error notification to the client, and the client collects the detailed error information from the hardware.
