Entry#

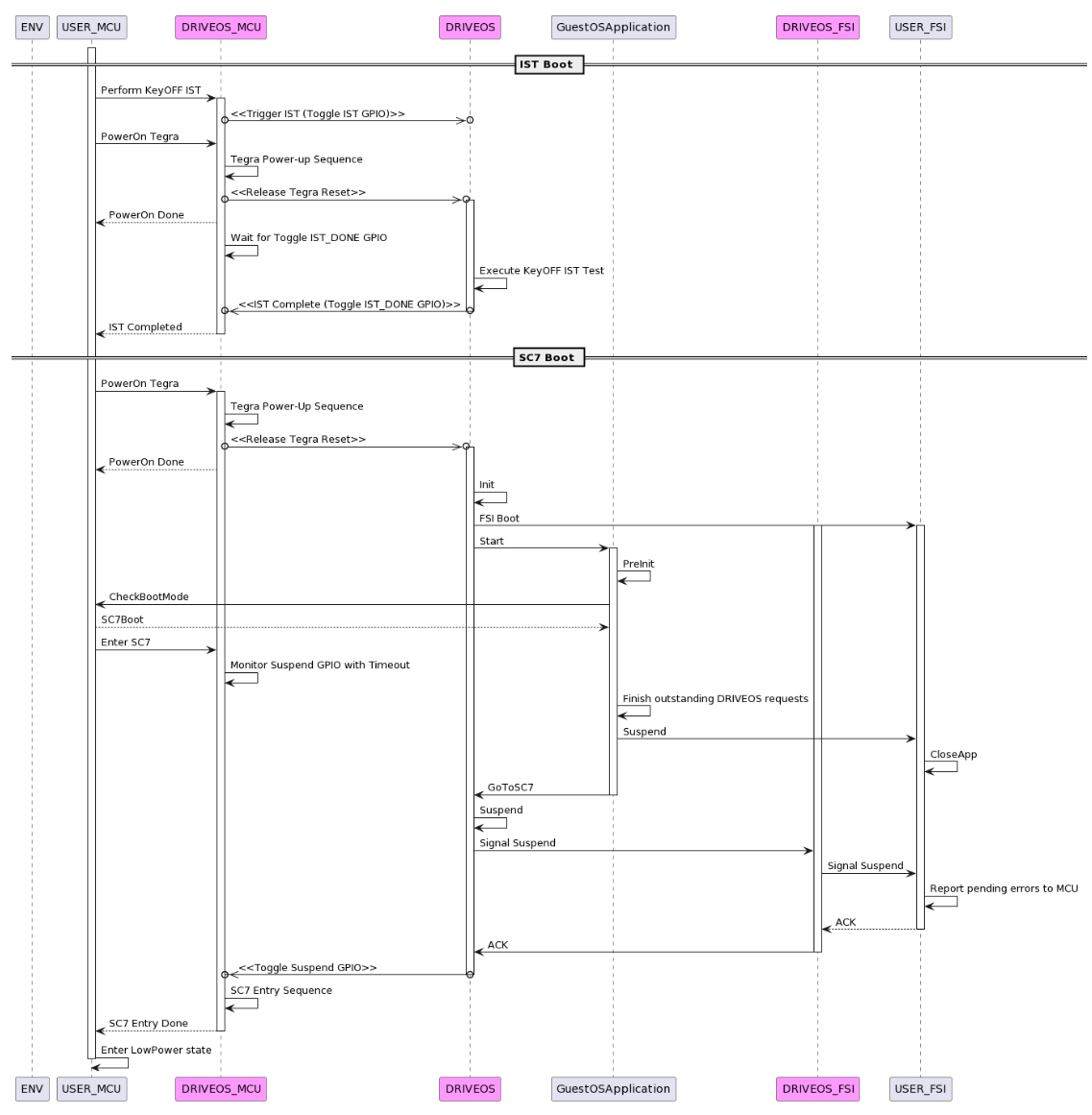

The diagram below shows the sequence to enter SC7, starting from the KeyOFF IST sequence at high level. For a detailed sequence diagram please refer to SMCU integration guide.


Where:

  • ENV - Represents the environment that provides the event that triggers the startup or shutdown

  • DRIVEOS - Rest of the DRIVEOS software running on the Orin chip

  • DRIVEOS_FSI - FSI functionality delivered by DriveOS

  • DRIVEOS_MCU - MCU functionality delivered by DriveOS

  • GuestOSApplication - User application running on the OS in a Guest Virtual Machine

  • USER_FSI - FSI firmware and user application integrated with DRIVEOS_FSI

  • USER_MCU - MCU Firmware and user application integrated with DRIVEOS_MCU
