dwImageNvMedia Struct Reference

Detailed Description

Defines an NvMedia image.

Definition at line 524 of file Image.h.

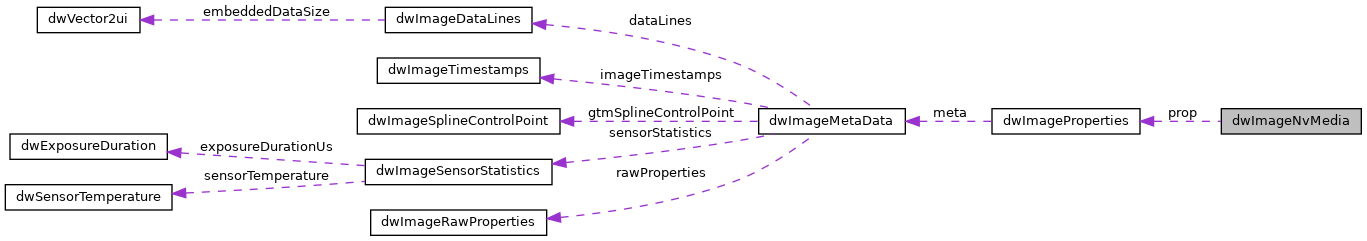

Collaboration diagram for dwImageNvMedia:

Data Fields
dwImageProperties	prop
	Holds image properties. More...
NvSciBufObj	imgBuf
	Holds the pointer to the NvSciBufObj image. More...
dwTime_t	timestamp_us
	Specifies the time in microseconds from system time epoch, when the image content was updated (ie EOF GMSL acquisition, USB camera processed frame, copied over from converted image etc...) More...

Field Documentation

imgBuf

NvSciBufObj dwImageNvMedia::imgBuf

Holds the pointer to the NvSciBufObj image.

Definition at line 530 of file Image.h.

prop

dwImageProperties dwImageNvMedia::prop

Holds image properties.

Definition at line 527 of file Image.h.

timestamp_us

dwTime_t dwImageNvMedia::timestamp_us

Specifies the time in microseconds from system time epoch, when the image content was updated (ie EOF GMSL acquisition, USB camera processed frame, copied over from converted image etc...)

Definition at line 533 of file Image.h.

---

The documentation for this struct was generated from the following file:

• Image.h
