dwCameraSIPLNotification Struct Reference

Detailed Description

Notification Data from SIPL.

Definition at line 371 of file Camera.h.

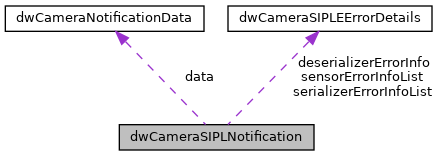

Collaboration diagram for dwCameraSIPLNotification:

Data Fields
dwCameraNotificationData	data
	NotificationData from SIPL, pipeline & device block event. More...
dwCameraSIPLEErrorDetails	deserializerErrorInfo
	Error info for deserializer, valid only for device block event. More...
bool	isRemoteError
	Set to true if remote (serializer) error detected, valid only for device block event. More...
uint8_t	linkErrorMask
	Store link mask for link error state, valid only for device block event (1 in index position indicates error, all 0 means no link error detected). More...
uint32_t	numCameraModules
	Number of the camera modules, valid only for device block event. More...
dwCameraSIPLEErrorDetails	serializerErrorInfoList [DW_CAMERA_MAX_CAMERAMODULES_PER_BLOCK]
	Error info for serializer, valid only for device block event. More...
dwCameraSIPLEErrorDetails	sensorErrorInfoList [DW_CAMERA_MAX_CAMERAMODULES_PER_BLOCK]
	Error info for sensor, valid only for device block event. More...

Field Documentation

data

dwCameraNotificationData dwCameraSIPLNotification::data

NotificationData from SIPL, pipeline & device block event.

Definition at line 374 of file Camera.h.

deserializerErrorInfo

dwCameraSIPLEErrorDetails dwCameraSIPLNotification::deserializerErrorInfo

Error info for deserializer, valid only for device block event.

Definition at line 377 of file Camera.h.

isRemoteError

bool dwCameraSIPLNotification::isRemoteError

Set to true if remote (serializer) error detected, valid only for device block event.

Definition at line 379 of file Camera.h.

linkErrorMask

uint8_t dwCameraSIPLNotification::linkErrorMask

Store link mask for link error state, valid only for device block event (1 in index position indicates error, all 0 means no link error detected).

Definition at line 382 of file Camera.h.

numCameraModules

uint32_t dwCameraSIPLNotification::numCameraModules

Number of the camera modules, valid only for device block event.

Definition at line 385 of file Camera.h.

sensorErrorInfoList

dwCameraSIPLEErrorDetails dwCameraSIPLNotification::sensorErrorInfoList[DW_CAMERA_MAX_CAMERAMODULES_PER_BLOCK]

Error info for sensor, valid only for device block event.

Definition at line 389 of file Camera.h.

serializerErrorInfoList

dwCameraSIPLEErrorDetails dwCameraSIPLNotification::serializerErrorInfoList[DW_CAMERA_MAX_CAMERAMODULES_PER_BLOCK]

Error info for serializer, valid only for device block event.

Definition at line 387 of file Camera.h.

---

The documentation for this struct was generated from the following file:

• Camera.h
