dw::framework::ManagedPortOutput< T > Class Template Reference

Detailed Description

template<typename T>
class dw::framework::ManagedPortOutput< T >

Derived ManagedPortOutput<T> provides type-specific interfaces for accessing buffers.

Definition at line 392 of file ManagedPort.hpp.

Inheritance diagram for dw::framework::ManagedPortOutput< T >:

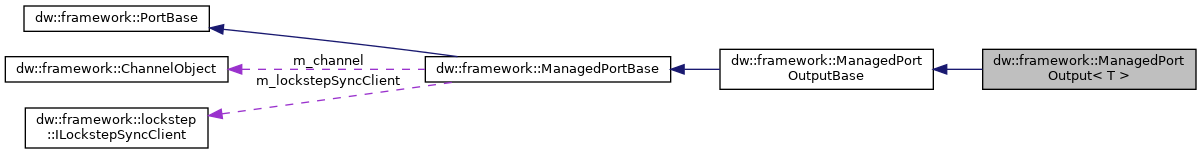

Collaboration diagram for dw::framework::ManagedPortOutput< T >:

Public Member Functions
detail::vectorIterable< T >	getAllBufferIter ()
T *	getBuffer ()
template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID==DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>
	ManagedPortOutput (const dw::core::StringView &name)
template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID==DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>
	ManagedPortOutput (const dw::core::StringView &name, ConstructProperties props)
template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID !=DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>
	ManagedPortOutput (const dw::core::StringView &name, ConstructProperties props, SpecimenT &ref)
template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID !=DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>
	ManagedPortOutput (const dw::core::StringView &name, SpecimenT &ref)
Public Member Functions inherited from dw::framework::ManagedPortOutputBase
void	acquire ()
void	bindChannel (ChannelObject *channel) override
dw::core::VectorFixed< GenericData >	getAllBuffers ()
ChannelMetadata &	getMetadata ()
const Properties &	getProperties () const noexcept
bool	isBound () const noexcept override
bool	isBufferAvailable () const noexcept
void	reset () override
void	send ()
void	sendAdvTimestamp ()
void	setCallbackBeforeSend (dw::core::Function< dwStatus()> callback)
void	setNodeName (const dw::core::StringView &nodeName) noexcept override
Public Member Functions inherited from dw::framework::ManagedPortBase
virtual void	bindChannel (ChannelObject *channel)=0
void	bindLockstepSyncClient (dw::framework::lockstep::ILockstepSyncClient *syncClient)
ChannelObject *	getChannel ()
const dw::core::StringView &	getName () const
	Get the name of the port. More...
const dw::core::StringView &	getNodeName () const
	Get the name of the node this port belongs to. More...
virtual bool	isBound () const noexcept=0
	ManagedPortBase (const dw::core::StringView &name)
	ManagedPortBase (const ManagedPortBase &other)=delete
	ManagedPortBase (ManagedPortBase &&other)=delete
ManagedPortBase &	operator= (const ManagedPortBase &other)=delete
ManagedPortBase &	operator= (ManagedPortBase &&other)=delete
virtual void	reset ()
void	setCycleCount (uint32_t cycleCount)
virtual void	setNodeName (const dw::core::StringView &nodeName) noexcept
	Set the name of the node this port belongs to. More...
void	setPeriod (uint32_t period)
virtual	~ManagedPortBase ()=default
Public Member Functions inherited from dw::framework::PortBase
virtual	~PortBase ()=default

Additional Inherited Members
Static Public Attributes inherited from dw::framework::ManagedPortOutputBase
static constexpr char	LOG_TAG [] {"ManagedPortOutputBase"}
Protected Member Functions inherited from dw::framework::ManagedPortOutputBase
GenericData	getBufferGeneric ()
	ManagedPortOutputBase (const dw::core::StringView &name, ConstructProperties props, GenericDataReference &&ref, std::type_index typeIndex)
Protected Member Functions inherited from dw::framework::ManagedPortBase
	FI_DECLARE_INSTANCE_SET_HANDLE (m_fiHandle)
Protected Attributes inherited from dw::framework::ManagedPortBase
ChannelObject *	m_channel
uint32_t	m_cycleCount
dw::framework::lockstep::ILockstepSyncClient *	m_lockstepSyncClient
dw::core::StringView	m_name
	The unique name within set of ports with the same direction. More...
dw::core::StringView	m_nodeName
	The name of the node this port belongs to. More...
uint32_t	m_period

Constructor & Destructor Documentation

ManagedPortOutput() [1/4]

template<typename T >

template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID !=DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>

dw::framework::ManagedPortOutput< T >::ManagedPortOutput ( const dw::core::StringView &  name, ConstructProperties  props, SpecimenT &  ref  )

inline

Parameters

[in]	name	the name of the output port.
[in]	props	the properties of the output Port.
[in]	ref	the reference data to be used by channel to allocate packets.

Definition at line 409 of file ManagedPort.hpp.

ManagedPortOutput() [2/4]

template<typename T >

template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID !=DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>

dw::framework::ManagedPortOutput< T >::ManagedPortOutput ( const dw::core::StringView &  name, SpecimenT &  ref  )

inline

Parameters

[in]	name	the name of the output port.
[in]	ref	the reference data to be used by channel to allocate packets.

Definition at line 420 of file ManagedPort.hpp.

ManagedPortOutput() [3/4]

template<typename T >

template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID==DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>

dw::framework::ManagedPortOutput< T >::ManagedPortOutput ( const dw::core::StringView &  name, ConstructProperties  props  )

inline

Parameters

[in]	name	the name of the output port.
[in]	props	the properties of the output Port.

Definition at line 430 of file ManagedPort.hpp.

ManagedPortOutput() [4/4]

template<typename T >

template<typename T2 = T, typename std::enable_if_t< parameter_traits< T2 >::PacketTID==DWFRAMEWORK_PACKET_ID_DEFAULT, void > * = nullptr>

dw::framework::ManagedPortOutput< T >::ManagedPortOutput ( const dw::core::StringView &  name )

inline

Parameters

[in]

name

the name of the output port.

Definition at line 439 of file ManagedPort.hpp.

Member Function Documentation

getAllBufferIter()

template<typename T >

detail::vectorIterable< T > dw::framework::ManagedPortOutput< T >::getAllBufferIter ( )

inline

iterable for all the buffers in the output channel pool.

Definition at line 447 of file ManagedPort.hpp.

getBuffer()

template<typename T >

T * dw::framework::ManagedPortOutput< T >::getBuffer ( )

inline

Get a pointer to the acquired buffer.

Note

returned pointer is never nullptr

Exceptions

when	the buffer cannot be cast to T.

Definition at line 457 of file ManagedPort.hpp.

---

The documentation for this class was generated from the following file:

• src/dwcgf/core/dwcgf/port/ManagedPort.hpp
