Setting up Cameras on the P3898 Platform
Note: The P3898 platform has connections for two camera
groups. There are two different deserializers used per camera group, and each
one supports the different link speed between the serializer and the
deserializer. Connect the camera module to the compatible deserializer.
Otherwise, the link-lock error is reported.

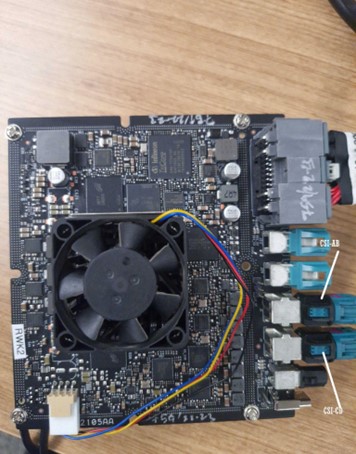

P3898
Camera Group A : MAX96724 (3 or 6Gbps)
Camera Group B : MAX96724F (3 Gbps)
