nvsipl::SiplControlAutoOutputParam Struct Reference
Detailed Description
AE/AWB Output parameters.
Definition at line 298 of file NvSIPLControlAutoDef.hpp.

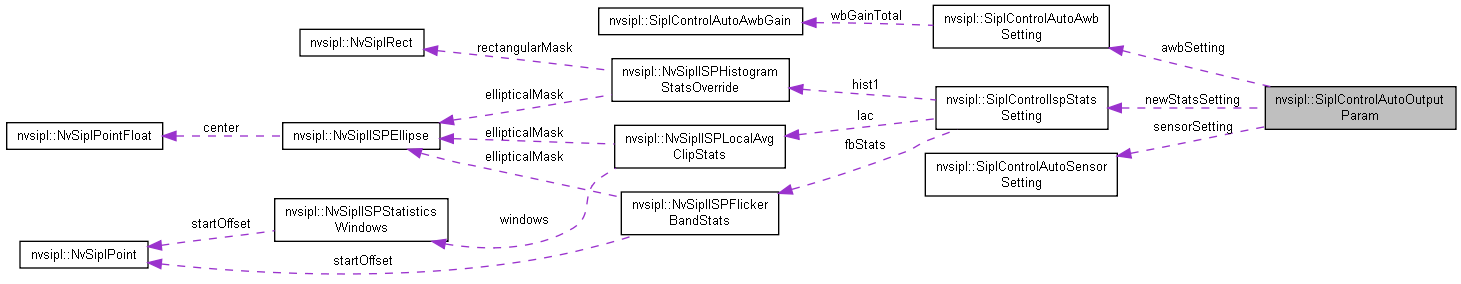

Collaboration diagram for nvsipl::SiplControlAutoOutputParam:
Data Fields | |
| SiplControlAutoSensorSetting | sensorSetting |
| Sensor exposure and gain settings. More... | |
| SiplControlAutoAwbSetting | awbSetting |
| AWB settings. More... | |
| SiplControlIspStatsSetting | newStatsSetting |
| Settings to config stats, reserved for Custom Plugin to config customized Stats settings. More... | |
| float_t | ispDigitalGain |
| Digital gain to be applied in ISP. More... | |
Field Documentation
◆ awbSetting
| SiplControlAutoAwbSetting nvsipl::SiplControlAutoOutputParam::awbSetting |
AWB settings.
Definition at line 306 of file NvSIPLControlAutoDef.hpp.
◆ ispDigitalGain
| float_t nvsipl::SiplControlAutoOutputParam::ispDigitalGain |
Digital gain to be applied in ISP.
- Supported values: [0.0, 8.0]
Definition at line 315 of file NvSIPLControlAutoDef.hpp.
◆ newStatsSetting
| SiplControlIspStatsSetting nvsipl::SiplControlAutoOutputParam::newStatsSetting |
Settings to config stats, reserved for Custom Plugin to config customized Stats settings.
Definition at line 310 of file NvSIPLControlAutoDef.hpp.
◆ sensorSetting
| SiplControlAutoSensorSetting nvsipl::SiplControlAutoOutputParam::sensorSetting |
Sensor exposure and gain settings.
Definition at line 302 of file NvSIPLControlAutoDef.hpp.
The documentation for this struct was generated from the following file:
