nvsipl::SiplControlIspStatsSetting Struct Reference
Detailed Description
Structure containing ISP stats settings.
Planned for deprecation in 6.0.8.0.
Definition at line 219 of file NvSIPLControlAutoDef.hpp.

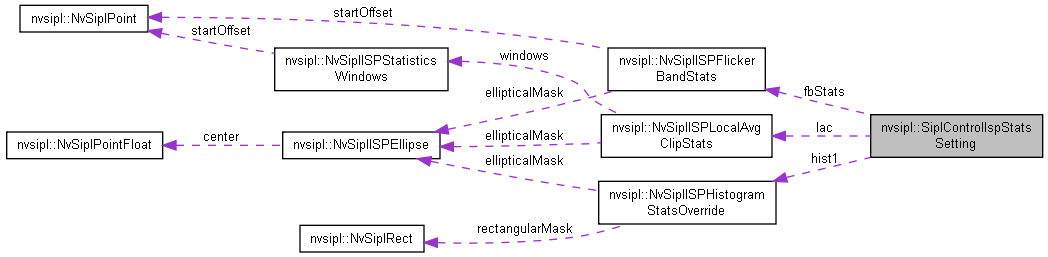

Collaboration diagram for nvsipl::SiplControlIspStatsSetting:
Data Fields | |
| bool | valid |
| Boolean flag to control whether ISP stats blocks are valid or not. More... | |
| NvSiplISPLocalAvgClipStats | lac [2] |
| Settings for 2 LAC stats ISP blocks, defined in NvSIPLISPStat.hpp. More... | |
| NvSiplISPHistogramStatsOverride | hist1 |
| Settings for Histogram 1 stats override block, defined in NvSIPLISPStat.hpp. More... | |
| NvSiplISPFlickerBandStats | fbStats |
| Settings for Flicker Band stats block, defined in NvSIPLISPStat.hpp. More... | |
Field Documentation
◆ fbStats
| NvSiplISPFlickerBandStats nvsipl::SiplControlIspStatsSetting::fbStats |
Settings for Flicker Band stats block, defined in NvSIPLISPStat.hpp.
This variable is not supported in SIPL Control Auto.
Definition at line 239 of file NvSIPLControlAutoDef.hpp.
◆ hist1
| NvSiplISPHistogramStatsOverride nvsipl::SiplControlIspStatsSetting::hist1 |
Settings for Histogram 1 stats override block, defined in NvSIPLISPStat.hpp.
Definition at line 233 of file NvSIPLControlAutoDef.hpp.
◆ lac
| NvSiplISPLocalAvgClipStats nvsipl::SiplControlIspStatsSetting::lac[2] |
Settings for 2 LAC stats ISP blocks, defined in NvSIPLISPStat.hpp.
Definition at line 228 of file NvSIPLControlAutoDef.hpp.
◆ valid
| bool nvsipl::SiplControlIspStatsSetting::valid |
Boolean flag to control whether ISP stats blocks are valid or not.
Definition at line 223 of file NvSIPLControlAutoDef.hpp.
The documentation for this struct was generated from the following file:
