Triggering Recovery Mechanism by Loader

During boot, when any bootloader, except BootROM, fails to load the next stage firmware, the recovery mechanism is triggered as follows:

  • Attempts to load the next stage firmware in the Active Boot Chain.
  • If the next stage firmware is loaded successfully, the loader continues to boot.
  • If the next stage firmware is NOT successfully loaded, the recovery mechanism is triggered.
  • If the INVALID_CHAINx bit in the SCRATCHr register is set to 1 or the switch_boot_chain soft fuse value is cleared to 0, these recovery actions are performed:
    • If the reset_to_recovery soft fuse value is set to 1, the system goes into forced recovery mode.
    • If the reset_to_recovery soft fuse value is cleared to 0, the system hangs.
  • If the INVALID_CHAINx bit is NOT set, and the switch_boot_chain soft fuse value is set to 1, then set the INVALID_CHAINx bit to 1 and change the ACTIVE_BOOT_CHAIN field in the SCRATCHr register and issue a reboot so that the system boots a different boot chain.

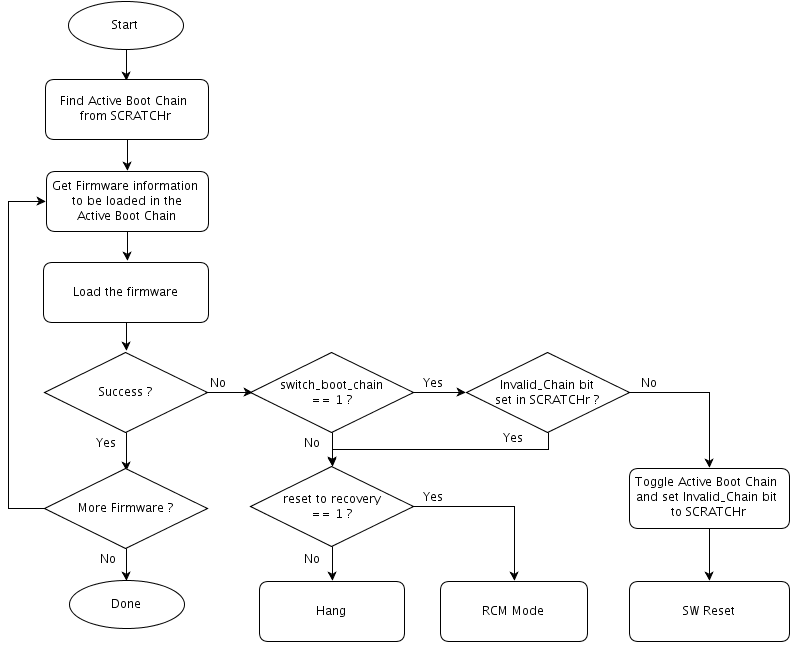

The flow for triggering the recovery mechanism by the loader is as follows:

media/image4.png

MB2 and Quickboot load the Global Partition Table. Because this firmware component does not belong to any boot chain, the recovery flow is as follows:

  • There is a single partition to store the global partition table of the system.
  • The single partition contains multiple signed copies of the partition table. If one copy is corrupted, the system uses the next copy.
  • The global partition table contains information for both boot chains of the system. As a result, the global partition table must NOT be erased during the update. If the global partition table is erased, the system cannot be recovered without reflashing the entire images.
