Running the Vulkan SC Samples#

This topic describes how to display Vulkan® SC information and how to run the Vulkan SC samples. OpenWFD is supported as a display module for the Vulkan SC samples.

Components#

Vulkan SC applications can be developed from Vulkan applications. To develop a Vulkan SC application, you first create a Vulkan application with similar functionality and then extract the offline state needed for the Vulkan SC application. For running and developing Vulkan SC applications, various components are involved:

  • Vulkan application : The Vulkan application is used to develop the Vulkan SC application.

    You use this application to extract the offline state needed for the Vulkan SC application.

  • JSON generation layer : This layer is used to generate the offline JSON pipeline state and the spir-v files that are needed for the PCC tool.

    The library name is libVkLayer_json_gen.so.

  • Pipeline Cache Compiler (PCC) : The PCC tool is used to generate the pipeline cache that the VKSC application loads.

Workflow#

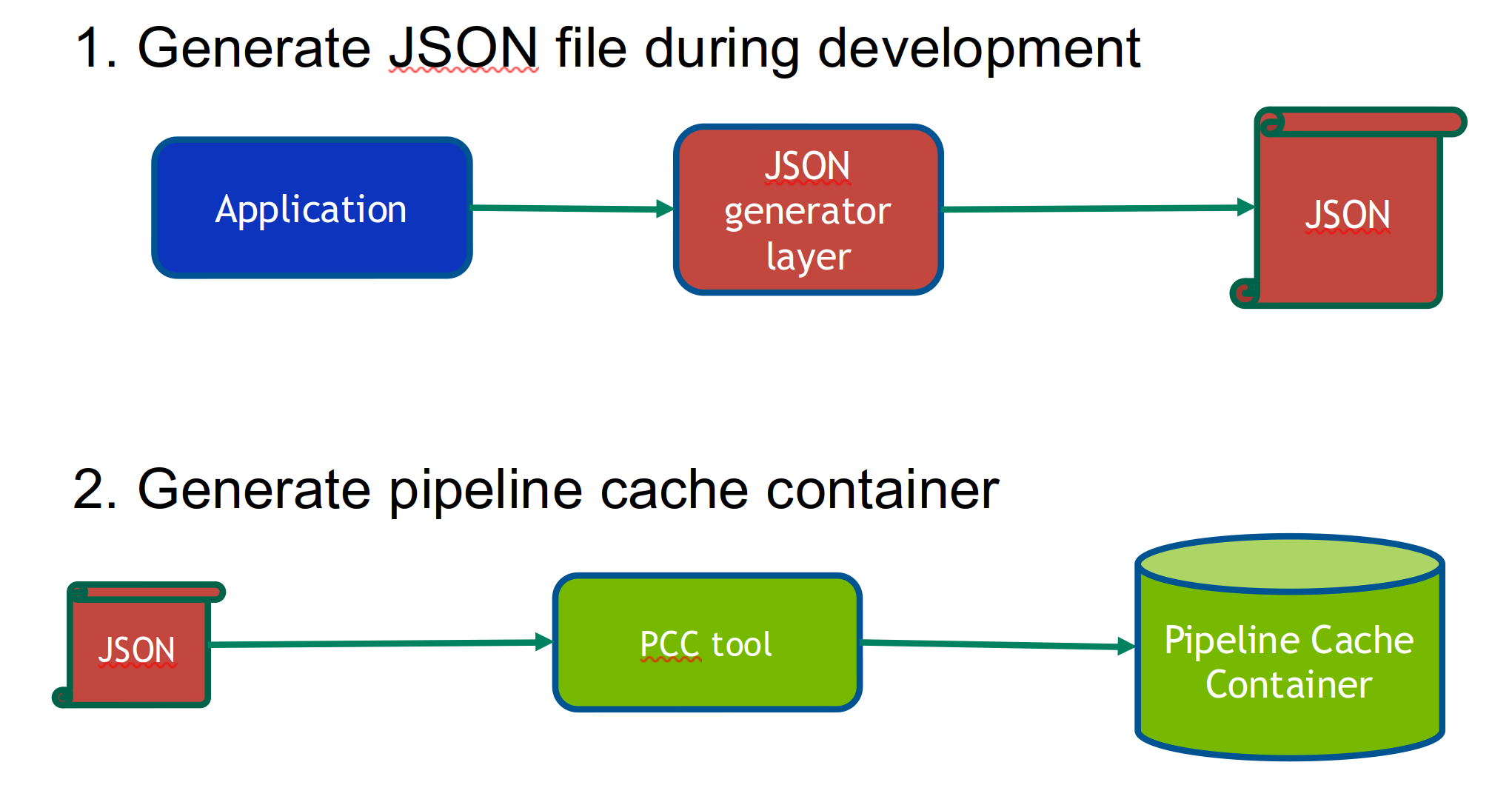

The following diagram outlines the workflow:


Running the vulkanscinfo Sample (Target)#

The vulkanscinfo command summarizes the core features of Vulkan SC API and saves the output to the text/json/html file.

  • To get a list of all available options for the vulkanscinfo command, specify the --help option:

    cd <VulkanSC-Samples>/build/bin
./vulkanscinfo –-help

  • To save the output to an HTML file, specify the --html option:

    cd <VulkanSC-Samples>/build/bin
./vulkanscinfo --html

Running the 01tri Sample (Target)#

  1. Generate pipeline cache by running vk_01tri.

    1. Generate the JSON files.

      The VK_LAYER_KHRONOS_json_gen layer is recommended to help automatically generate the JSON files. However, this layer is only supported on Vulkan; therefore, the Vulkan version of this vk_01tri sample with VK_LAYER_KHRONOS_json_gen enabled is also built.

      Run vk_01tri on target to generate the JSON files as follows:

      cd <VulkanSC-Samples>/build/bin
export VK_LAYER_PATH=/etc/vulkansc/icd.d
export VK_JSON_FILE_PATH=$PWD/data/pipeline/vksc_01tri/
./vk_01tri

      Upon successful execution, the following files are generated in VK_JSON_FILE_PATH:

      • vk_01tri_pipeline_0.json

      • vk_01tri_pipeline_0.vert.spv

      • vk_01tri_pipeline_0.frag.spv

    2. Generate the pipeline cache by running the host PCC tool.

      The PCC tool provided in the SDK is an x86_64 binary; therefore, run the tool only on x86_64 Linux host machine as follows:

      cd <VulkanSC-Samples>/build/bin/data/pipeline/vksc_01tri
${NV_WORKSPACE}/drive-linux/vulkansc/pcc/Linux_x86-64/pcc -chip [ga10b|gb10b] -path ./ -out pipeline_cache.bin

      Upon successful execution, pipeline_cache.bin will be generated in the current folder.

  2. Run the vksc_01tri sample .

    The vksc_01tri sample already contains a default pipeline cache generated for ga10b and gb10b GPUs, and the cache binary in hex format is embedded in the pipeline_cache.hpp file that is built with the vksc_01tri binary. Therefore, you can run the sample directly by following these steps:

    1. Save the off-screen rendering result to an image file.

      cd <VulkanSC-Samples>/build/bin
./vksc_01tri -o

      After you run commands, an image file tri.ppm is generated. You can use any image viewer to open it.

    2. Display the rendering result by using OpenWFD.

      cd <VulkanSC-Samples>/build/bin
./vksc_01tri -w

    To run the vksc_01tri sample with the external pipeline cache generated in step 1.

    cd <VulkanSC-Samples>/build/bin
./vksc_01tri -c -o

    Note

    By specifying the -c option, the application will look for the pipeline_cache.bin file in the ./data/pipeline/vksc_01tri directory. So pipeline_cache.bin generated in step 1 must be copied to that directory.

Running the computeparticles Sample (Target)#

To read the texture data, the vksc_computeparticles sample uses the libktx.so external library that is located in <VulkanSC-Sample>/external/ktx. Therefore, you must specify the path to the library before running the samples as follows:

export LD_LIBRARY_PATH=<VulkanSC-Sample>/external/ktx/Linux_aarch64:$LD_LIBRARY_PATH

  1. Generate the pipeline cache by running vk_computeparticles.

    1. Generate the JSON files.

      The VK_LAYER_KHRONOS_json_gen layer is recommended to help to automatically generate the JSON files. However, this layer is only supported on Vulkan, therefore the Vulkan version of this sample vk_computeparticles with VK_LAYER_KHRONOS_json_gen enabled is also built.

      Run vk_computeparticles on target to generate the JSON files as follows:

      cd <VulkanSC-Samples>/build/bin
export VK_LAYER_PATH=/etc/vulkansc/icd.d
export VK_JSON_FILE_PATH=$PWD/data/pipeline/computeparticles/
./vk_computeparticles

      The following files are generated in VK_JSON_FILE_PATH:

      • vk_computeparticles_pipeline_0.json

      • vk_computeparticles_pipeline_0.frag.spv

      • vk_computeparticles_pipeline_0.vert.spv

      • vk_computeparticles_pipeline_1.json

      • vk_computeparticles_pipeline_1.compute.spv

      This sample uses two different pipelines, graphics pipeline and compute pipeline; therefore, two JSON files are generated.

    2. Generate the pipeline cache by using the host PCC tool.

      The PCC tool provided in the SDK is an x86_64 binary, therefore it can only be run on x86_64 Linux host machine as follows:

      cd <VulkanSC-Samples>/build/bin/data/pipeline/computeparticles
${NV_WORKSPACE}/drive-linux/vulkansc/pcc/Linux_x86-64/pcc -chip [ga10b|gb10b] -path ./ -out pipeline_cache.bin

      Upon successful execution, pipeline_cache.bin will be generated in the current folder.

  2. Running the vksc_computeparticles sample .

    The vksc_computeparticles sample already contains a default pipeline cache generated for ga10b and gb10b GPUs, and the cache binary in hex format is embedded in the pipeline_cache.hpp file that is built with the vksc_computeparticles binary. Therefore, you can run the sample directly.

    1. Save the off-screen rendering result to an image file.

      cd <VulkanSC-Samples>/build/bin
./vksc_computeparticles -o

    2. Display the rendering result by using OpenWFD.

      cd <VulkanSC-Samples>/build/bin
./vksc_computeparticles -w

    To run the vksc_computeparticles sample with the external pipeline cache generated in step 1.

    cd <VulkanSC-Samples>/build/bin
./vksc_computeparticles -c -o

    Note

    By specifying the -c option, the application will look for the pipeline_cache.bin file in the ./data/pipeline/vksc_computeparticles directory, so pipeline_cache.bin generated in step 1 must be copied to that directory.

Alternative Method to Generate JSON Files (Host)#

Regarding generating the JSON files described in step 1.a (Generate the JSON files) , an alternative method can automatically generate the JSON files by using the x86_64 binaries that can be run on x86_64 Linux host machines. To use this method, follow the instructions to build the x86_64 binaries as described in Host x86 Binary Build.

Prerequisites :

  • Desktop Vulkan (version 1.2 or later) SDK and driver (from NVIDIA) must be installed.

  • The VK_LAYER_KHRONOS_json_gen library must be available on the host.

To run the vk_01tri_host sample on host,

cd <VulkanSC-Samples>/build_host/bin
export VK_LAYER_PATH=${NV_WORKSPACE}/drive-linux/vulkansc/ecosystem/vulkan-sc-layers/json_generation_layers/binaries/Linux_x86_64
export VK_JSON_FILE_PATH=$PWD/
./vk_01tri_host

To run the vk_computeparticles_host sample on host,

cd <VulkanSC-Samples>/build_host/bin
export VK_LAYER_PATH=${NV_WORKSPACE}/drive-linux/vulkansc/ecosystem/vulkan-sc-layers/json_generation_layers/binaries/Linux_x86_64
export VK_JSON_FILE_PATH=$PWD/
LD_LIBRARY_PATH=<VulkanSC-Sample>/external/ktx/Linux_x86_64 ./vk_computeparticles_host
