nvsipl::IspStatsData Struct Reference
Detailed Description
ISP statistics container for data attributes.
Definition at line 696 of file NvSIPLISPStat.hpp.

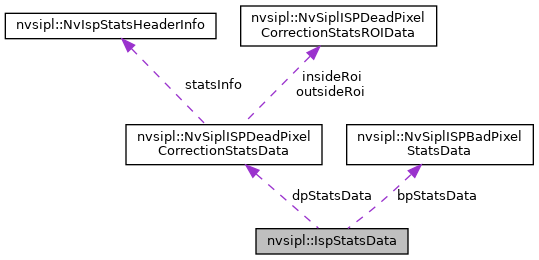

Collaboration diagram for nvsipl::IspStatsData:
Data Fields | |
| std::array< NvSiplISPHistogramStatsData, 3 > | histStatsData |
| Structure containing histogram statistics block data. More... | |
| std::array< NvSiplISPLocalAvgClipStatsData, 2 > | lacStatsData |
| Structure containing local average clip statistics block data. More... | |
| NvSiplISPBadPixelStatsData | bpStatsData |
| Structure containing bad pixel statistics block data (ISP6) More... | |
| NvSiplISPDeadPixelCorrectionStatsData | dpStatsData |
| Structure containing dead pixel statistics block data (ISP7) More... | |
Field Documentation
◆ bpStatsData
| NvSiplISPBadPixelStatsData nvsipl::IspStatsData::bpStatsData |
Structure containing bad pixel statistics block data (ISP6)
Definition at line 708 of file NvSIPLISPStat.hpp.
◆ dpStatsData
| NvSiplISPDeadPixelCorrectionStatsData nvsipl::IspStatsData::dpStatsData |
Structure containing dead pixel statistics block data (ISP7)
Definition at line 712 of file NvSIPLISPStat.hpp.
◆ histStatsData
| std::array<NvSiplISPHistogramStatsData, 3> nvsipl::IspStatsData::histStatsData |
Structure containing histogram statistics block data.
Definition at line 700 of file NvSIPLISPStat.hpp.
◆ lacStatsData
| std::array<NvSiplISPLocalAvgClipStatsData, 2> nvsipl::IspStatsData::lacStatsData |
Structure containing local average clip statistics block data.
Definition at line 704 of file NvSIPLISPStat.hpp.
The documentation for this struct was generated from the following file:
