dwRadarSSIDebugInfo Struct Reference
Detailed Description
Definition at line 1151 of file RadarSSI.h.

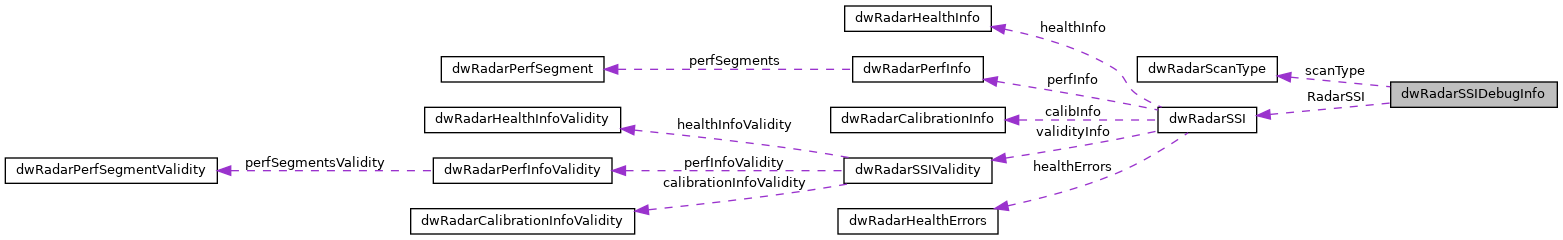

Collaboration diagram for dwRadarSSIDebugInfo:
Data Fields | |
| uint32_t | scanIndex |
| Sensor-provided scan index. More... | |
| dwTime_t | sensorTimestamp |
| Sensor timestamp at which the current measurement scan was started (us). Same time domain as hostTimestamp. More... | |
| dwTime_t | hostTimestamp |
| Host timestamp at reception of first packet belonging to this scan (us) More... | |
| dwRadarScanType | scanType |
| Type of scan. More... | |
| uint32_t | numReturns |
| Number of radar returns in this scan. More... | |
| dwRadarSSI | RadarSSI |
| Attached RadarSSI message. More... | |
| uint8_t | sensorID |
| Sensor ID. More... | |
Field Documentation
◆ hostTimestamp
| dwTime_t dwRadarSSIDebugInfo::hostTimestamp |
Host timestamp at reception of first packet belonging to this scan (us)
Definition at line 1160 of file RadarSSI.h.
◆ numReturns
| uint32_t dwRadarSSIDebugInfo::numReturns |
Number of radar returns in this scan.
Definition at line 1166 of file RadarSSI.h.
◆ RadarSSI
| dwRadarSSI dwRadarSSIDebugInfo::RadarSSI |
Attached RadarSSI message.
Definition at line 1169 of file RadarSSI.h.
◆ scanIndex
| uint32_t dwRadarSSIDebugInfo::scanIndex |
Sensor-provided scan index.
Definition at line 1154 of file RadarSSI.h.
◆ scanType
| dwRadarScanType dwRadarSSIDebugInfo::scanType |
Type of scan.
Definition at line 1163 of file RadarSSI.h.
◆ sensorID
| uint8_t dwRadarSSIDebugInfo::sensorID |
Sensor ID.
Definition at line 1172 of file RadarSSI.h.
◆ sensorTimestamp
| dwTime_t dwRadarSSIDebugInfo::sensorTimestamp |
Sensor timestamp at which the current measurement scan was started (us). Same time domain as hostTimestamp.
Definition at line 1157 of file RadarSSI.h.
The documentation for this struct was generated from the following file:
