Detailed Description
Holds the sensor embedded data parsed info structure.
The sensor driver can selectively activate or deactivate any of the parsed info blocks, depending on whether the sensor supports it.
To activate a sensor info block, the sensor driver must set the info block's valid flag to TRUE and populate the parsed information corresponding to the block. To disable a sensor info block, it must set the valid flag to FALSE.
For example, if a sensor supports only exposure, white balance and CRC info, the sensor driver activates only the sensorExpInfo, sensorWBInfo, and sensorCRCInfo blocks (it sets their valid flags to TRUE) and disables all of the others (it sets their valid flags to FALSE).
Definition at line 460 of file NvSIPLCDICommon.h.

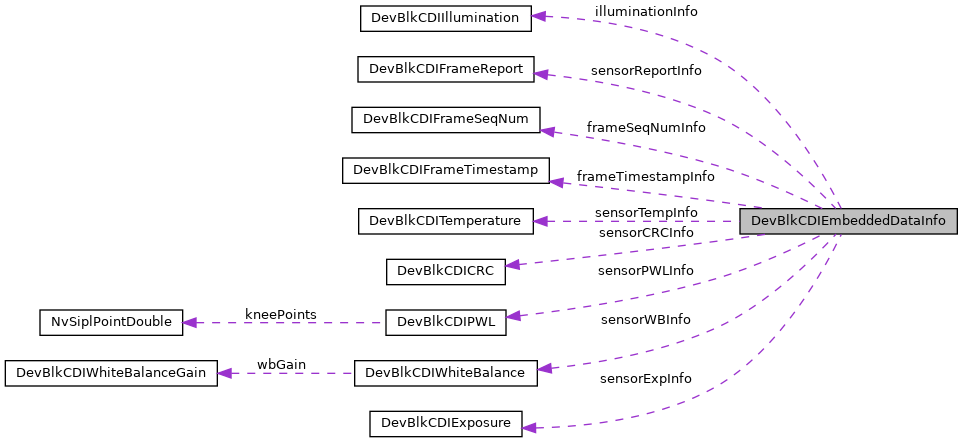

Data Fields | |
| uint32_t | numExposures |
| Holds the parsed embedded data frame number of exposures for the captured frame. More... | |
| DevBlkCDIExposure | sensorExpInfo |
| Holds the parsed embedded data sensor exposure info for the captured frame. More... | |
| DevBlkCDIWhiteBalance | sensorWBInfo |
| Holds the parsed embedded data sensor white balance info for the captured frame. More... | |
| DevBlkCDIPWL | sensorPWLInfo |
| Holds the parsed embedded data sensor PWL info for the captured frame. More... | |
| DevBlkCDICRC | sensorCRCInfo |
| Holds the parsed embedded data sensor CRC info for the captured frame. More... | |
| DevBlkCDIFrameReport | sensorReportInfo |
| Holds the parsed embedded data frame report info for the captured frame. More... | |
| DevBlkCDIIllumination | illuminationInfo |
| Holds the parsed embedded data illumination info for the captured frame. More... | |
| DevBlkCDITemperature | sensorTempInfo |
| Holds the parsed embedded data sensor temperature info for the captured frame. More... | |
| DevBlkCDIFrameSeqNum | frameSeqNumInfo |
| Holds parsed embedded data frame sequence number info for the captured frame. More... | |
| DevBlkCDIFrameTimestamp | frameTimestampInfo |
| Holds parsed embedded data frame timestamp info for the captured frame. More... | |
| int8_t | errorFlag |
| Holds information on errors present in the embedded data. More... | |
Field Documentation
◆ errorFlag
| int8_t DevBlkCDIEmbeddedDataInfo::errorFlag |
Holds information on errors present in the embedded data.
The meaning of these values is determined by the driver.
Definition at line 521 of file NvSIPLCDICommon.h.
◆ frameSeqNumInfo
| DevBlkCDIFrameSeqNum DevBlkCDIEmbeddedDataInfo::frameSeqNumInfo |
Holds parsed embedded data frame sequence number info for the captured frame.
Definition at line 509 of file NvSIPLCDICommon.h.
◆ frameTimestampInfo
| DevBlkCDIFrameTimestamp DevBlkCDIEmbeddedDataInfo::frameTimestampInfo |
Holds parsed embedded data frame timestamp info for the captured frame.
Definition at line 515 of file NvSIPLCDICommon.h.
◆ illuminationInfo
| DevBlkCDIIllumination DevBlkCDIEmbeddedDataInfo::illuminationInfo |
Holds the parsed embedded data illumination info for the captured frame.
Definition at line 497 of file NvSIPLCDICommon.h.
◆ numExposures
| uint32_t DevBlkCDIEmbeddedDataInfo::numExposures |
Holds the parsed embedded data frame number of exposures for the captured frame.
Definition at line 465 of file NvSIPLCDICommon.h.
◆ sensorCRCInfo
| DevBlkCDICRC DevBlkCDIEmbeddedDataInfo::sensorCRCInfo |
Holds the parsed embedded data sensor CRC info for the captured frame.
Definition at line 487 of file NvSIPLCDICommon.h.
◆ sensorExpInfo
| DevBlkCDIExposure DevBlkCDIEmbeddedDataInfo::sensorExpInfo |
Holds the parsed embedded data sensor exposure info for the captured frame.
Definition at line 471 of file NvSIPLCDICommon.h.
◆ sensorPWLInfo
| DevBlkCDIPWL DevBlkCDIEmbeddedDataInfo::sensorPWLInfo |
Holds the parsed embedded data sensor PWL info for the captured frame.
Definition at line 482 of file NvSIPLCDICommon.h.
◆ sensorReportInfo
| DevBlkCDIFrameReport DevBlkCDIEmbeddedDataInfo::sensorReportInfo |
Holds the parsed embedded data frame report info for the captured frame.
Definition at line 492 of file NvSIPLCDICommon.h.
◆ sensorTempInfo
| DevBlkCDITemperature DevBlkCDIEmbeddedDataInfo::sensorTempInfo |
Holds the parsed embedded data sensor temperature info for the captured frame.
Definition at line 503 of file NvSIPLCDICommon.h.
◆ sensorWBInfo
| DevBlkCDIWhiteBalance DevBlkCDIEmbeddedDataInfo::sensorWBInfo |
Holds the parsed embedded data sensor white balance info for the captured frame.
Definition at line 477 of file NvSIPLCDICommon.h.
The documentation for this struct was generated from the following file:
