nvsipl::PlatformCfg Struct Reference
Detailed Description
Defines the camera platform configuration.
Describes up to MAX_DEVICEBLOCKS_PER_PLATFORM deserializers connected to Tegra.
Definition at line 36 of file NvSIPLPlatformCfg.hpp.

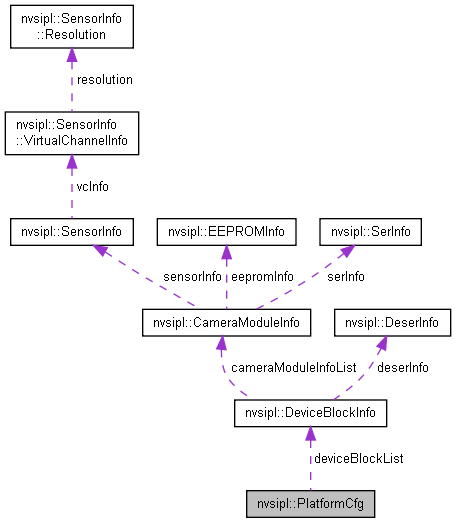

Collaboration diagram for nvsipl::PlatformCfg:
Data Fields | |
| std::string | platform = "" |
| Holds the platform name. More... | |
| std::string | platformConfig = "" |
| Holds the platform configuration name. More... | |
| std::string | description = "" |
| Holds the platform configuration description. More... | |
| uint32_t | numDeviceBlocks = 0U |
| Holds the number of device blocks. More... | |
| DeviceBlockInfo | deviceBlockList [MAX_DEVICEBLOCKS_PER_PLATFORM] |
| Holds an array of DeviceBlockInfo. More... | |
Field Documentation
◆ description
| std::string nvsipl::PlatformCfg::description = "" |
Holds the platform configuration description.
Definition at line 43 of file NvSIPLPlatformCfg.hpp.
◆ deviceBlockList
| DeviceBlockInfo nvsipl::PlatformCfg::deviceBlockList[MAX_DEVICEBLOCKS_PER_PLATFORM] |
Holds an array of DeviceBlockInfo.
Definition at line 48 of file NvSIPLPlatformCfg.hpp.
◆ numDeviceBlocks
| uint32_t nvsipl::PlatformCfg::numDeviceBlocks = 0U |
Holds the number of device blocks.
This value must be less than or equal to MAX_DEVICEBLOCKS_PER_PLATFORM.
Definition at line 46 of file NvSIPLPlatformCfg.hpp.
◆ platform
| std::string nvsipl::PlatformCfg::platform = "" |
Holds the platform name.
For example, "ddpx-a".
Definition at line 39 of file NvSIPLPlatformCfg.hpp.
◆ platformConfig
| std::string nvsipl::PlatformCfg::platformConfig = "" |
Holds the platform configuration name.
Definition at line 41 of file NvSIPLPlatformCfg.hpp.
The documentation for this struct was generated from the following file:
