Lidar Self-Calibration

Lidar Calibration - Operating Principle

Lidar calibration estimates the current sensor orientation (roll, pitch, yaw) and height with respect to the vehicle coordinate frame. Roll, pitch and height are estimated via fitting a ground plane near the vehicle. Yaw and pitch are estimated via aligning the vehicle egomotion with the Lidar sensor motion in the same time interval. Calibration will stop once the vehicle drives in a speed lower than 5 km/h. It will resume once the vehicle drives faster than that speed limit. Current estimation targets at multi-beam 360 degree rotational Lidar sensors, i.e. Velodyne-HDL32E and Velodyne-HDL64E.

Lidar Roll/Pitch/Yaw/Height

Current roll/pitch/height estimation is not suitable for Lidar sensor with low density and narrow horizontal field-of-view, i.e. Velodyne-VLP16 and IBEO-LUX4. The estimation inputs a full Lidar sweep and expects sufficient cloud of points in the vehicle vicinity. Such Region-Of-Interest (rectangular ROI) is defined by the vehicle physical specifications and nominal sensor calibration. In the ROI, the method selects 3D Lidar points whose heights are within a certain threshold for ground plane fitting and optimization. The estimated ground plane normal vector is used to compute the roll and pitch corrections with respect to the nominal sensor coordinate frame. The ground plane's distance to the sensor coordinate origin defines the actual height.

Yaw can not be determined by ground plane fitting. It requires extra information such as vehicle presents circular trajectory while driving. Hand-eye optimization aligns vehicle relative pose with Lidar point cloud relative poses between two timestamps. The optimization outputs yaw/pitch angles. Those estimates (roll/pitch/height and yaw/pitch) are inserted into robust estimation histograms over time. After the estimates are accepted, their modes define the best estimations. Pitch is considered to be accepted only if the two pitch estimates (hand-eye and ground-plane-based) agree with each other within small threshold (see histograms below).

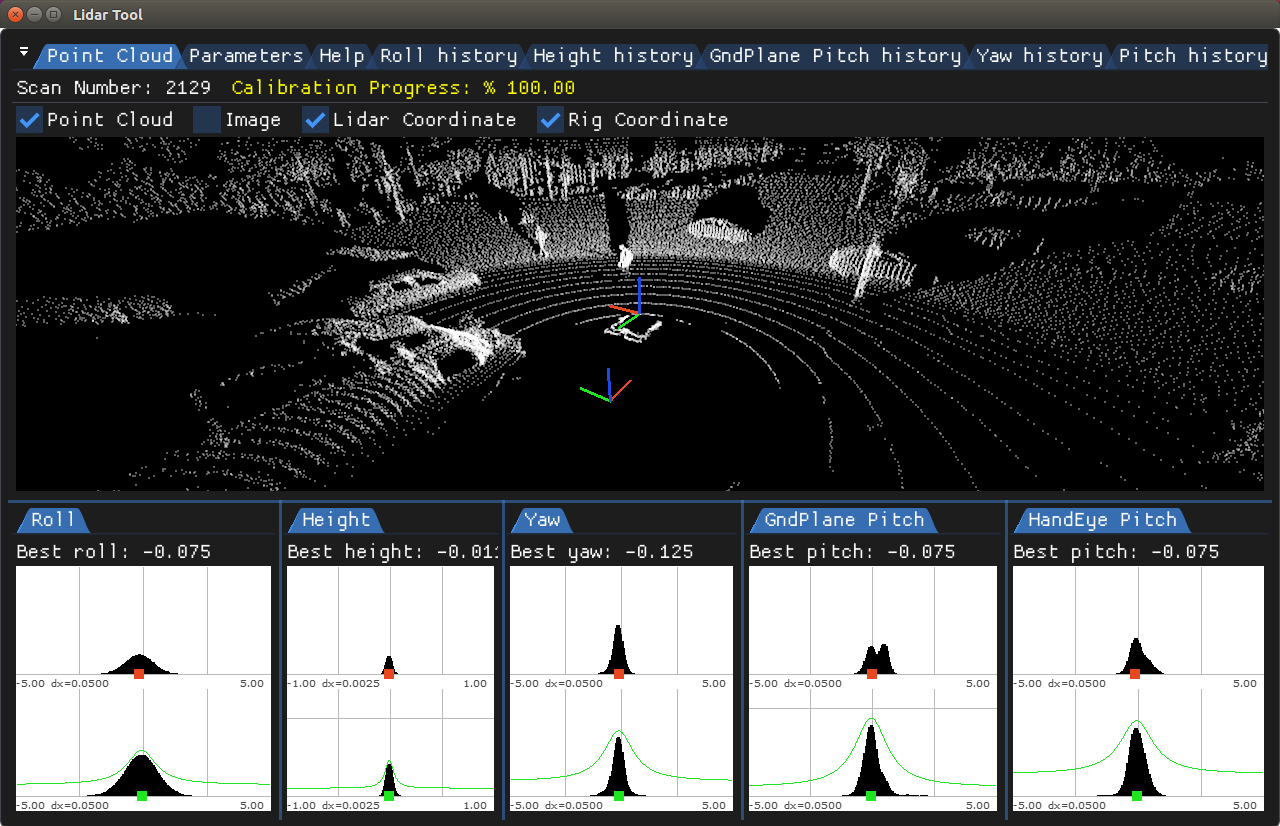

Roll/Pitch/Yaw/Height estimation histograms (bottom), collected over a period of time

Requirements

Initialization Requirements

• Nominal values on Lidar calibration
  • Orientation(roll/pitch/yaw): less than 10 degree error
  • Position(x/y/z): x and y are not used for now, z is less than 10 cm error
  • Vehicle physical dimenstions: wheel base, vehicle width and length

Runtime Calibration Dependencies

• If using IMU-based egomotion in the pose-based API, then egomotion needs to be based on accurate IMU calibration

Input Requirements

• Assumption: Vehicle performs the aforementioned maneuvers until calibration convergence.
• Vehicle egomotion: requirements can be found in the Egomotion module
• Sensors: in order to achieve good performance, Lidar calibration requires data from IMU, GPS, CAN sensors.

Output Requirements

• Corrected roll/pitch/yaw value: less than 0.3 degrees
• Corrected height value: less than 3 cm
• Time to correction: less than 10 minutes for Lidar sensor with 10HZ spinning frequency

Cross-validation KPI

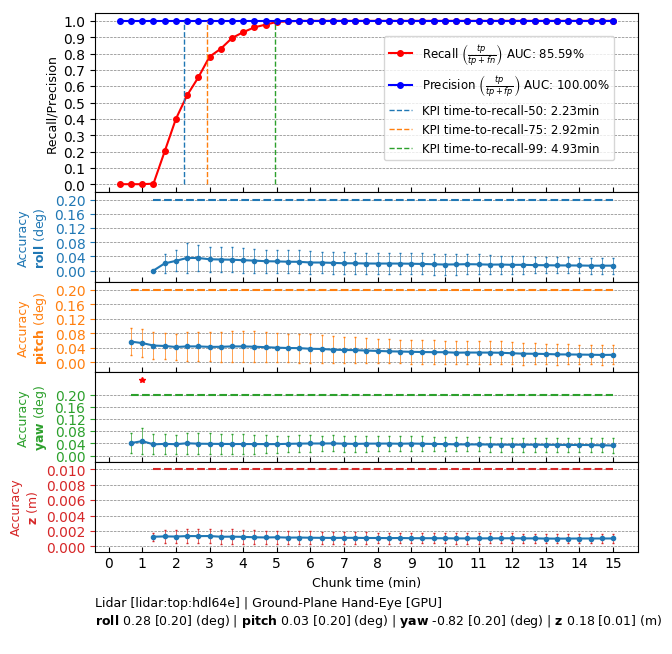

Several hours of data are used to produce a reference calibration value for cross-validation. Then, short periods of data are evaluated for whether they can recover the same values. For example, the graph below shows precision/recall curves of Lidar self-calibration. Precision indicates that an accepted calibration is within a fixed precision threshold from the reference calibration, and recall indicates the ratio of accepted calibrations in the given amount of time.

Workflow

The following code snippet shows the general structure of a program that performs Lidar self-calibration

dwCalibrationEngine_initialize(...);          // depends on sensor from rig configuration module
dwCalibrationEngine_initializeLidar(...);     // depends on nominal calibration from rig configuration
dwCalibrationEngine_startCalibration(...);    // runtime calibration dependencies need to be met

while (true) // main loop
{
    // code to get IMU measurement
    // code to get CAN measurement
    // code to get GPS measurement
    // code to feed IMU, CAN and GPS measurements to vehicle egomotion
    // code to get lidar sweep

    // get vehicle relative pose
    dwTransformation3f vehicleDeltaPose;
    dwEgomotion_computeRelativeTransformation(&vehicleDeltaPose, ...)

    // get relative pose between two lidar sweeps
    dwTransformation3f lidarDeltaPose;
    dwICP_optimize(&lidarDeltaPose, ...)

    // feed lidar point cloud into self-calibration
    dwCalibrationEngine_addLidarPointCloud(...)

    // feed relative lidar and vehicle poses into self-calibration
    dwCalibrationEngine_addLidarPose(...)

    // retrieve calibration status
    dwCalibrationEngine_getCalibrationStatus(...);

    // retrieve self-calibration results
    dwCalibrationEngine_getSensorToRigTransformation(...);
}

dwCalibrationEngine_stopCalibration(...);

This workflow is demonstrated in the following sample: Lidar Calibration Sample
