nvsipl::SiplControlAutoInputParam Struct Reference
Detailed Description
Input parameters for processing AE/AWB.
Definition at line 264 of file NvSIPLControlAutoDef.hpp.

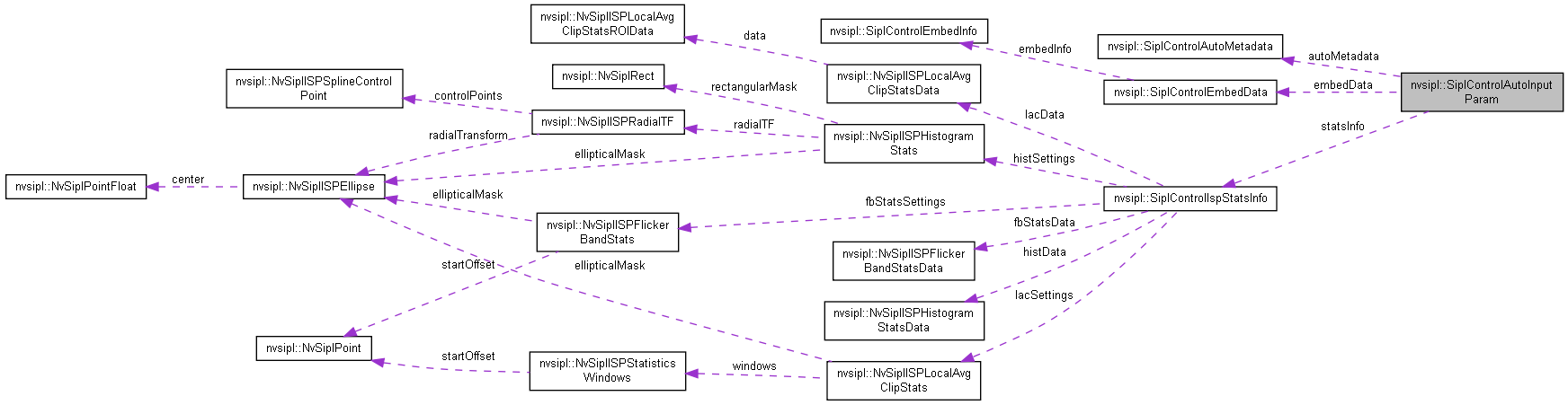

Collaboration diagram for nvsipl::SiplControlAutoInputParam:
Data Fields | |
| SiplControlEmbedData | embedData |
| Embedded settings. More... | |
| DevBlkCDISensorAttributes | sensorAttr |
| Sensor attributes, DevBlkCDISensorAttributes is defined in NvSIPLCDICommon.h. More... | |
| SiplControlIspStatsInfo | statsInfo |
| Stats buffers and settings. More... | |
| SiplControlAutoMetadata | autoMetadata |
| Metadata info for algorithm. More... | |
Field Documentation
◆ autoMetadata
| SiplControlAutoMetadata nvsipl::SiplControlAutoInputParam::autoMetadata |
Metadata info for algorithm.
Definition at line 291 of file NvSIPLControlAutoDef.hpp.
◆ embedData
| SiplControlEmbedData nvsipl::SiplControlAutoInputParam::embedData |
Embedded settings.
Definition at line 268 of file NvSIPLControlAutoDef.hpp.
◆ sensorAttr
| DevBlkCDISensorAttributes nvsipl::SiplControlAutoInputParam::sensorAttr |
Sensor attributes, DevBlkCDISensorAttributes is defined in NvSIPLCDICommon.h.
DevBlkCDISensorAttributes has 9 member variables:
- sensorName, a string holds the name attribute. If not supported, set to '\0'.
- sensorCFA, holds the CFA attribute. If not supported, set to zero.
- sensorFuseId, holds the fuse ID attribute. If not supported, set to '\0'.
- numActiveExposures, supported value [1, DEVBLK_CDI_MAX_EXPOSURES]
- sensorExpRange {float min, float max} [DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 100.0] max [min, 100.0]
- sensorGainRange {float min, float max} [DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 1000.0] max [min, 1000.0]
- sensorWhiteBalanceRange {float min, float max}[DEVBLK_CDI_MAX_EXPOSURES], supported values: min [0.0, 1000.0] max [min, 1000.0]
- sensorGainFactor, supported values : [0.0, 1000.0]
- numFrameReportBytes, supported values: [1, DEVBLK_CDI_MAX_FRAME_REPORT_BYTES]
Definition at line 283 of file NvSIPLControlAutoDef.hpp.
◆ statsInfo
| SiplControlIspStatsInfo nvsipl::SiplControlAutoInputParam::statsInfo |
Stats buffers and settings.
Definition at line 287 of file NvSIPLControlAutoDef.hpp.
The documentation for this struct was generated from the following file:
