nvsipl::NvSiplISPRadialTF Struct Reference
Detailed Description
Defines a radial transform.
Definition at line 350 of file NvSIPLISPStat.hpp.

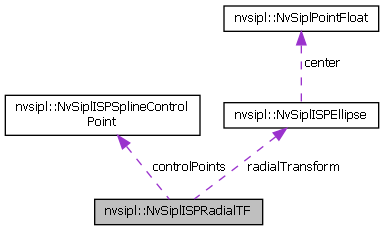

Collaboration diagram for nvsipl::NvSiplISPRadialTF:
Data Fields | |
| NvSiplISPEllipse | radialTransform |
| Holds ellipse for radial transform. More... | |
| NvSiplISPSplineControlPoint | controlPoints [NVSIPL_ISP_RADTF_POINTS] |
| Defines spline control point for radial transfer function. More... | |
Field Documentation
◆ controlPoints
| NvSiplISPSplineControlPoint nvsipl::NvSiplISPRadialTF::controlPoints[NVSIPL_ISP_RADTF_POINTS] |
Defines spline control point for radial transfer function.
- Supported values for X coordinate of spline control point : [0.0, 2.0]
- Supported values for Y coordinate of spline control point : [0.0, 2.0]
- Supported values for slope of spline control point : \([-2^{16}, 2^{16}]\)
Definition at line 370 of file NvSIPLISPStat.hpp.
◆ radialTransform
| NvSiplISPEllipse nvsipl::NvSiplISPRadialTF::radialTransform |
Holds ellipse for radial transform.
Coordinates of image top left and bottom right points are (0, 0) & (width, height) respectively.
- Supported values for X coordinate of the center: [0, input width]
- Supported values for Y coordinate of the center: [0, input height]
- Supported values for horizontal axis: [16, 2 x input width]
- Supported values for vertical axis: [16, 2 x input height]
- Supported values for angle: [0.0, 360.0]
Definition at line 363 of file NvSIPLISPStat.hpp.
The documentation for this struct was generated from the following file:
