NvMediaDPBInfo Struct Reference
Detailed Description
Holds decoded Picture Buffer information.
Definition at line 317 of file nvmedia_parser.h.

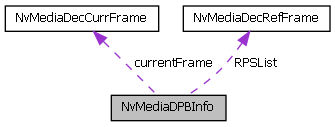

Collaboration diagram for NvMediaDPBInfo:
Data Fields | |
| uint32_t | poc_fn_bits |
| Specify the max number of bits used to derive frame number. More... | |
| NvMediaDecCurrFrame | currentFrame |
| Specify the property of current decoded frame. More... | |
| uint32_t | uActiveRefFrames |
| number of valid entries in RPS More... | |
| NvMediaDecRefFrame | RPSList [16] |
| RPS List NvMediaDecRefFrame as signaled in slice header excluding current frame, only first nActiveRefFrames are valid. More... | |
Field Documentation
◆ currentFrame
| NvMediaDecCurrFrame NvMediaDPBInfo::currentFrame |
Specify the property of current decoded frame.
Definition at line 322 of file nvmedia_parser.h.
◆ poc_fn_bits
| uint32_t NvMediaDPBInfo::poc_fn_bits |
Specify the max number of bits used to derive frame number.
Definition at line 320 of file nvmedia_parser.h.
◆ RPSList
| NvMediaDecRefFrame NvMediaDPBInfo::RPSList[16] |
RPS List NvMediaDecRefFrame as signaled in slice header excluding current frame, only first nActiveRefFrames are valid.
This can be different from list of frames in current DPB due to frame loss.
Definition at line 329 of file nvmedia_parser.h.
◆ uActiveRefFrames
| uint32_t NvMediaDPBInfo::uActiveRefFrames |
number of valid entries in RPS
Definition at line 324 of file nvmedia_parser.h.
The documentation for this struct was generated from the following file:
