Detailed Description

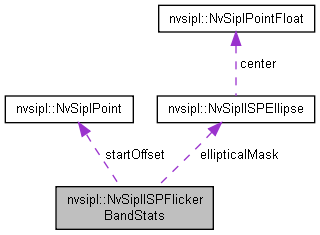

Holds controls for flicker band statistics (FB Stats).
Definition at line 225 of file NvSIPLISPStat.hpp.
Data Fields | |
| NvSiplBool | enable |
| Holds a Boolean to enable flicker band statistics block. More... | |
| NvSiplPoint | startOffset |
| Holds the offset of the first band top line. More... | |
| uint16_t | bandCount |
| Holds count of flicker band samples to collect per frame. More... | |
| uint32_t | bandWidth |
| Holds width of single band. More... | |
| uint32_t | bandHeight |
| Holds height of single band. More... | |
| float_t | min |
| Holds minimum value of pixel to include for flicker band stats. More... | |
| float_t | max |
| Holds maximum value of pixel to include for flicker band stats. More... | |
| NvSiplBool | ellipticalMaskEnable |
| Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area. More... | |
| NvSiplISPEllipse | ellipticalMask |
| Holds an elliptical mask to exclude pixels outside a specified area. More... | |
Field Documentation
◆ bandCount
| uint16_t nvsipl::NvSiplISPFlickerBandStats::bandCount |
Holds count of flicker band samples to collect per frame.
Valid Range: [1, 256]
- Constraints: If bandCount == 256, bottom of last band must align with bottom of the image.
Definition at line 243 of file NvSIPLISPStat.hpp.
◆ bandHeight
| uint32_t nvsipl::NvSiplISPFlickerBandStats::bandHeight |
Holds height of single band.
Valid Range: [2, input height - startOffset.y]
- Constrains: Total number of accumulated pixels must be <= 2^18
- Constrains: If bandCount == 256, bottom of last band must align with bottom of the image.
Definition at line 258 of file NvSIPLISPStat.hpp.
◆ bandWidth
| uint32_t nvsipl::NvSiplISPFlickerBandStats::bandWidth |
Holds width of single band.
Valid Range: [2, input width - startOffset.x]; must be an even number
- Constrains: Total number of accumulated pixels must be <= 2^18
Definition at line 250 of file NvSIPLISPStat.hpp.
◆ ellipticalMask
| NvSiplISPEllipse nvsipl::NvSiplISPFlickerBandStats::ellipticalMask |
Holds an elliptical mask to exclude pixels outside a specified area.
Coordinates of the image's top left and bottom right points are (0, 0) and (width, height) respectively.
Definition at line 280 of file NvSIPLISPStat.hpp.
◆ ellipticalMaskEnable
| NvSiplBool nvsipl::NvSiplISPFlickerBandStats::ellipticalMaskEnable |
Holds a Boolean to enable an elliptical mask for excluding pixels outside a specified area.
Definition at line 273 of file NvSIPLISPStat.hpp.
◆ enable
| NvSiplBool nvsipl::NvSiplISPFlickerBandStats::enable |
Holds a Boolean to enable flicker band statistics block.
Definition at line 229 of file NvSIPLISPStat.hpp.
◆ max
| float_t nvsipl::NvSiplISPFlickerBandStats::max |
Holds maximum value of pixel to include for flicker band stats.
Valid Range: [0.0, 1.0], max >= min
Definition at line 268 of file NvSIPLISPStat.hpp.
◆ min
| float_t nvsipl::NvSiplISPFlickerBandStats::min |
Holds minimum value of pixel to include for flicker band stats.
Valid Range: [0.0, 1.0]
Definition at line 263 of file NvSIPLISPStat.hpp.
◆ startOffset
| NvSiplPoint nvsipl::NvSiplISPFlickerBandStats::startOffset |
Holds the offset of the first band top line.
- X coordinate of start offset: [0, input width]
- Y coordinate of start offset: [0, input height]
- The X coordinate of the start offset must be an even number.
Definition at line 236 of file NvSIPLISPStat.hpp.
The documentation for this struct was generated from the following file:
