NvMediaEncodeConfigAV1 Struct Reference
Detailed Description
Holds AV1 encoder configuration parameters.
Definition at line 1895 of file nvmedia_common_encode.h.

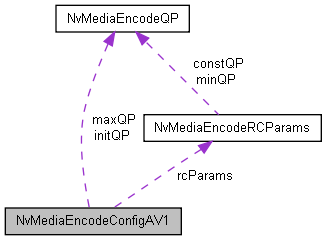

Collaboration diagram for NvMediaEncodeConfigAV1:
Data Fields | |
| uint32_t | features |
| Holds bit-wise OR`ed configuration feature flags. More... | |
| uint32_t | gopLength |
| Holds the number of pictures in one GOP. More... | |
| NvMediaEncodeRCParams | rcParams |
| Holds the rate control parameters for the current encoding session. More... | |
| uint32_t | idrPeriod |
| Holds the IDR interval. More... | |
| uint32_t | base_qindex |
| Specifies quant base index (used only when rc_mode = 0) for each segment 0...255. More... | |
| int32_t | delta_y_dc_q |
| Specifies explicit qindex adjustment for y dccoefficient, -15...15. More... | |
| int32_t | delta_uv_dc |
| Specifies qindex adjustment for uv accoefficient, -15...15. More... | |
| int32_t | delta_uv_ac |
| Specifies qindex adjustment for uv dccoefficient, -15...15. More... | |
| NvMediaEncodeQP | initQP |
| Holds Initial QP parameters. More... | |
| NvMediaEncodeQP | maxQP |
| Holds maximum QP parameters. More... | |
| NvMediaBool | disableCdfUpdate |
| Set to true to disable CDF update. More... | |
| NvMediaEncPreset | encPreset |
| Holds the encode quality pre-set. More... | |
| NvMediaEncodeAV1SeqHdrRepeatMode | repeatSeqHdr |
| Holds the frequency of the writing of Sequence header. More... | |
| uint32_t | reserved [17] |
| Reserved Bytes. More... | |
The documentation for this struct was generated from the following file:
