Non-sequential Passes

‍TO BE IMPLEMENTED

By default each pass within a node depends on the previous pass. If a node can parallelize the computation across multiple hardware engines, e.g. two CPU cores, custom inter-pass dependencies can be defined.

‍The functions implementing the passes which might run concurrently need to be thread-safe.

Example

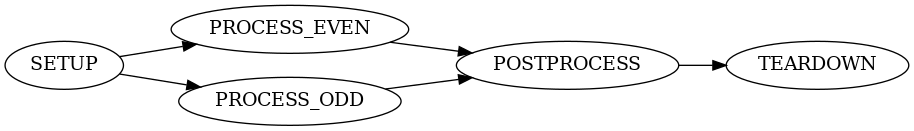

In the following example the two passes PROCESS_EVEN and PROCESS_ODD can run in parallel to perform their work concurrently.

Example of Non-Sequential Passes

The corresponding C++ snippet describing the passes:

static constexpr auto describePasses()
{
// the first pass has no (default) dependency
describePass("SETUP"_sv, DW_PROCESSOR_TYPE_CPU),
// the default dependency is the previous SETUP pass
describePass("PROCESS_EVEN"_sv, DW_PROCESSOR_TYPE_CPU),
// the default dependency would be the PROCESS_EVEN pass which is not desired
// hence providing a custom dependency on the SETUP pass
describePass("PROCESS_ODD"_sv, DW_PROCESSOR_TYPE_CPU, describePassDependencies("SETUP"_sv)),
// the default dependency would be only the PROCESS_ODD pass which is not desired
// hence providing custom dependencies on the PROCESS_EVEN and PROCESS_ODD pass
describePass("POSTPROCESS"_sv, DW_PROCESSOR_TYPE_CPU, describePassDependencies("PROCESS_EVEN"_sv, "PROCESS_ODD"_sv)),
// the default dependency is the previous POSTPROCESS pass
describePass("TEARDOWN"_sv, DW_PROCESSOR_TYPE_CPU));
};
constexpr PassDescriptorT< 0 > describePass(dw::core::StringView &&name, dwProcessorType processorType)
constexpr auto describePassCollection(const Args &&... args) -> std::tuple< Args... >
constexpr auto describePassDependencies(const Args &&... args) -> std::array< dw::core::StringView, sizeof...(Args)>

References

  • The schema for .node.json files captures the description of custom pass dependencies under passes -> dependencies.
  • The C++ API dw::framework::describePass() has an optional parameter to define custom inter-pass dependencies.
