Feature-based Camera Self-Calibration

Operating Principle

The camera's extrinsic pose calibration with respect to the vehicle is represented by both orientation and position parameters.

Orientation parameters are pitch and roll with respect to a nominal ground plane, and yaw with respect to the car's forward direction. The camera's pitch and yaw orientation components are crucial for lane-holding, where the accuracy requirements are such that relying only on factory calibration is unrealistic. Pitch and roll are important for, e.g., distance estimation and ground plane projections. In a similar way, the camera's height is crucial for map generation of road markings on the ground.

NVIDIA^® DriveWorks uses visually tracked features to estimate camera motion and calibrate the camera's full orientation and height component in a self-calibration setting. Pitch and yaw are calibrated simultaneously by comparing the translation direction obtained from the visual motion and the car's egomotion. Likewise, roll is calibrated by matching estimated angular motion of the camera with the car's egomotion, and requires turn maneuvers to be estimated. In addition, visually tracked and triangulated features on the ground plane next to the car are used to estimate the height component of the camera's position relative to the car.

Camera Motion Estimation

Camera motion estimation is performed by considering a pair of images and minimizing the epipolar-based error of it's tracked features. The calibration engine receives feature tracks for each frame and it will decide which image pairs are suitable for calibration. This results in camera motion in form of a rigid transformation (rotation and translation direction) between the camera at two points in time.

Camera Roll / Pitch / Yaw / Height

The visual motion obtained in the previous step is compared to the motion of the car (estimated by the egomotion module). Using the well-known hand-eye constraint, the relative transformation between the camera and the car is estimated. This relative transform provides the pitch and yaw of the camera. Turning car motion constraints the roll of the camera. Additionally, the camera motion is used to triangulate feature tracks on the ground next to the car, from which the camera's height is inferred.

The instantaneous calibration for an image pair is accumulated in histograms for the calibration's roll, pitch, yaw, and height components to estimate a final calibration in a robust way.

Tracked features image (top), roll/pitch/yaw/height histograms of a feature-calibrated camera (bottom), collected over a period of time. The nominal calibration is indicated by blue horizon/forward directions, the corrected calibration by green indicators

Requirements

Initialization Requirements

• Nominal values on camera calibration
  • Orientation(roll/pitch/yaw): roll/pitch/yaw less than 5 degree error
  • Position(x/y/z): less than 10 mm
  • Intrinsic calibration: accurate to 0.5 pixel

Runtime Calibration Dependencies

• Any height calibration: absolute scale is inferred from egomotion, which needs to use calibrated odometry properties (e.g., wheel radii via radar self-calibration)
• Side-camera roll calibration: side-camera roll is inferred from egomotion's axis of rotation, which needs to be based on an accurate IMU calibration

Input Requirements

• Assumption: feature tracks compatible with DriveWork's module Features
• Vehicle egomotion: requirements can be found in the Egomotion module

Output Requirements

• Corrected calibration for pitch/yaw (mandatory) and roll/height (optionally, if requested by user)
• Correction accuracy:
  • pitch/yaw: less than 0.20deg error
  • roll: less than 0.25deg error
  • height: less than 3cm error
• Time/Events to correction:
  • pitch/yaw: less than 1:44 minutes in 75% of the cases, less than 3:30 minutes in 100% of the cases
  • roll: correction depends on turning motion, and requires less than four strong turns in 75% of the cases, and less than six strong turns in 100% of the cases
  • height: less than 2:41 minutes in 75% of the cases, less than 4:15 minutes in 100% of the cases

Cross-validation KPI

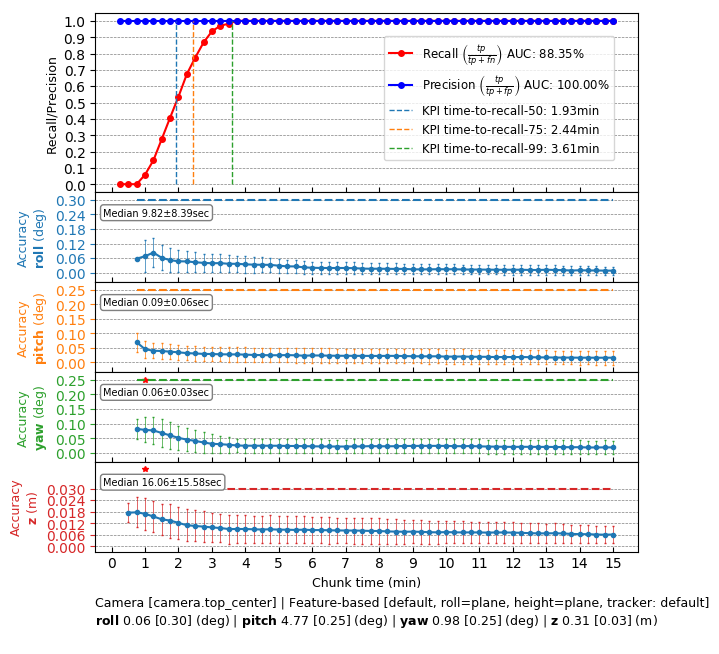

Several hours of data are used to produce a reference calibration value for cross-validation. Then, short periods of data are evaluated for whether they can recover the same values. For example, the graph below shows precision/recall curves of motion-based camera roll/pitch/yaw/height self-calibration. Precision indicates that an accepted calibration is within a fixed precision threshold from the reference calibration, and recall indicates the ratio of accepted calibrations in the given amount of time.

Workflow

The following code snippet shows the general structure of a program that performs camera self-calibration

dwFeatureListHandle_t featureListHandle;   // used by the features module

dwCalibrationEngine_initialize(...);       // depends on sensor from rig configuration module
dwCalibrationEngine_initializeCamera(...); // depends on nominal calibration from rig configuration. Estimated signals (roll/pitch/yaw/height) can be selected here
dwCalibrationEngine_startCalibration(...); // runtime calibration dependencies need to be met

while(true) // main loop
{
    // track features for current camera frame
    dwFeatureTracker_trackFeatures(featureListHandle, ...);

    // get feature tracks
    dwFeatureListPointers featureDataGPU;
    dwFeatureList_getDataPointers(&featureDataGPU, ..., featureListHandle); // requires features module

    // feed feature tracks into self-calibration
    dwCalibrationEngine_addFeatureDetections(..., featureDataGPU.featureCount, ...);

    // retrieve calibration status
    dwCalibrationEngine_getCalibrationStatus(...);

    // retrieve self-calibration results
    dwCalibrationEngine_getSensorToRigTransformation(...);
}

dwCalibrationEngine_stopCalibration(...);

This workflow is demonstrated in the following sample: Camera Calibration Sample
