NvMediaEncodeConfigH265 Struct Reference
Detailed Description
Holds the H265 encoder configuration parameters.
Definition at line 1267 of file nvmedia_common_encode.h.

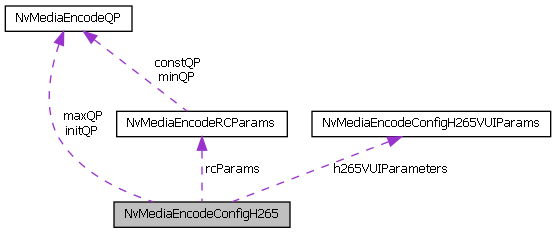

Collaboration diagram for NvMediaEncodeConfigH265:
Data Fields | |
| uint32_t | features |
| Holds bit-wise OR`ed configuration feature flags. More... | |
| uint32_t | gopLength |
| Holds the number of pictures in one GOP. More... | |
| NvMediaEncodeRCParams | rcParams |
| Holds the rate control parameters for the current encoding session. More... | |
| NvMediaEncodeH264SPSPPSRepeatMode | repeatSPSPPS |
| Holds the frequency of the writing of Sequence and Picture parameters. More... | |
| uint32_t | idrPeriod |
| Holds the IDR interval. More... | |
| uint16_t | numSliceCountMinus1 |
| Holds a number that is 1 less than the desired number of slices per frame. More... | |
| uint8_t | disableDeblockingFilter |
| Holds disable the deblocking filter. More... | |
| uint8_t | enableWeightedPrediction |
| Holds enable weighted prediction. More... | |
| uint32_t | intraRefreshPeriod |
| Holds the interval between frames that trigger a new intra refresh cycle and this cycle lasts for intraRefreshCnt frames. More... | |
| uint32_t | intraRefreshCnt |
| Holds the number of frames over which intra refresh will happen. More... | |
| uint32_t | maxSliceSizeInBytes |
| Holds the maximum slice size in bytes for dynamic slice mode. More... | |
| uint32_t | numCTUsPerSlice |
| Number of CTU per slice. More... | |
| NvMediaEncodeConfigH265VUIParams * | h265VUIParameters |
| Holds the H265 video usability info pamameters. More... | |
| NvMediaEncodeQuality | quality |
| Holds encode quality pre-set. More... | |
| NvMediaEncodeQP | initQP |
| Holds Initial QP parameters. More... | |
| NvMediaEncodeQP | maxQP |
| Holds maximum QP parameters. More... | |
| NvMediaEncPreset | encPreset |
| Holds the encode quality pre-set. More... | |
| bool | enableNewPreset |
| Set to true to use encPreset instead of quality. More... | |
The documentation for this struct was generated from the following file:
